  • PAUT Automation System Equipment

  • DEEPSOUND R5 Made in Korea # High Performance · Customized Design # Research & Development

  • DEEPSOUND R5

  • DEEPSOUND R5
    • Rack-mount design (19” rack compatible)
    • PAUT supporting up to 32 channels and 128 elements, with 4 UT Ports
    • Multi-board configuration fully supported
    • Easily expandable via dedicated I/O Ports
    • Development Software Kit (DSK) provided for custom research and application programming

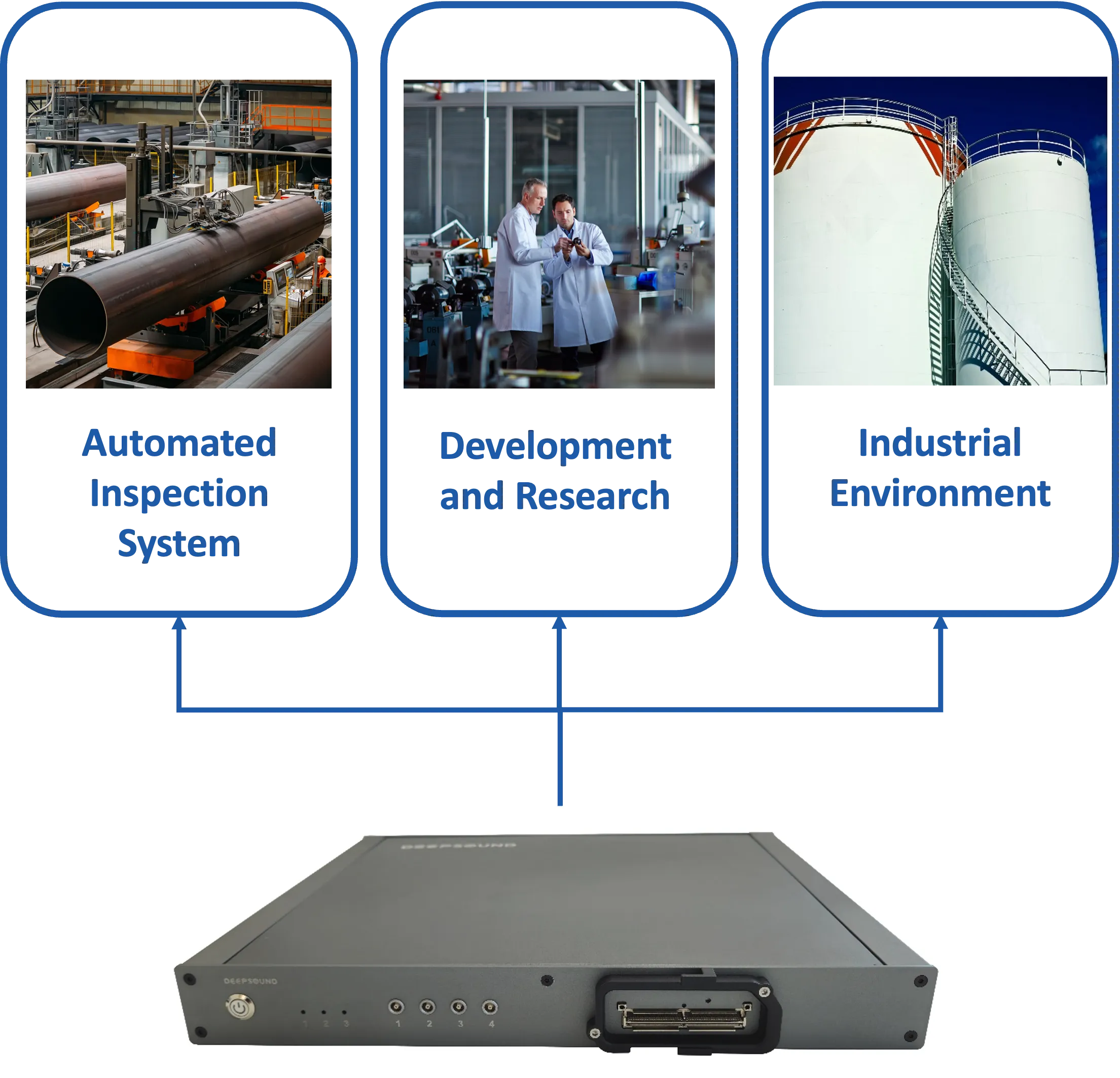

The DEEPSOUND R5 is highly optimized for automated inspection systems and advanced R&D laboratory environments.

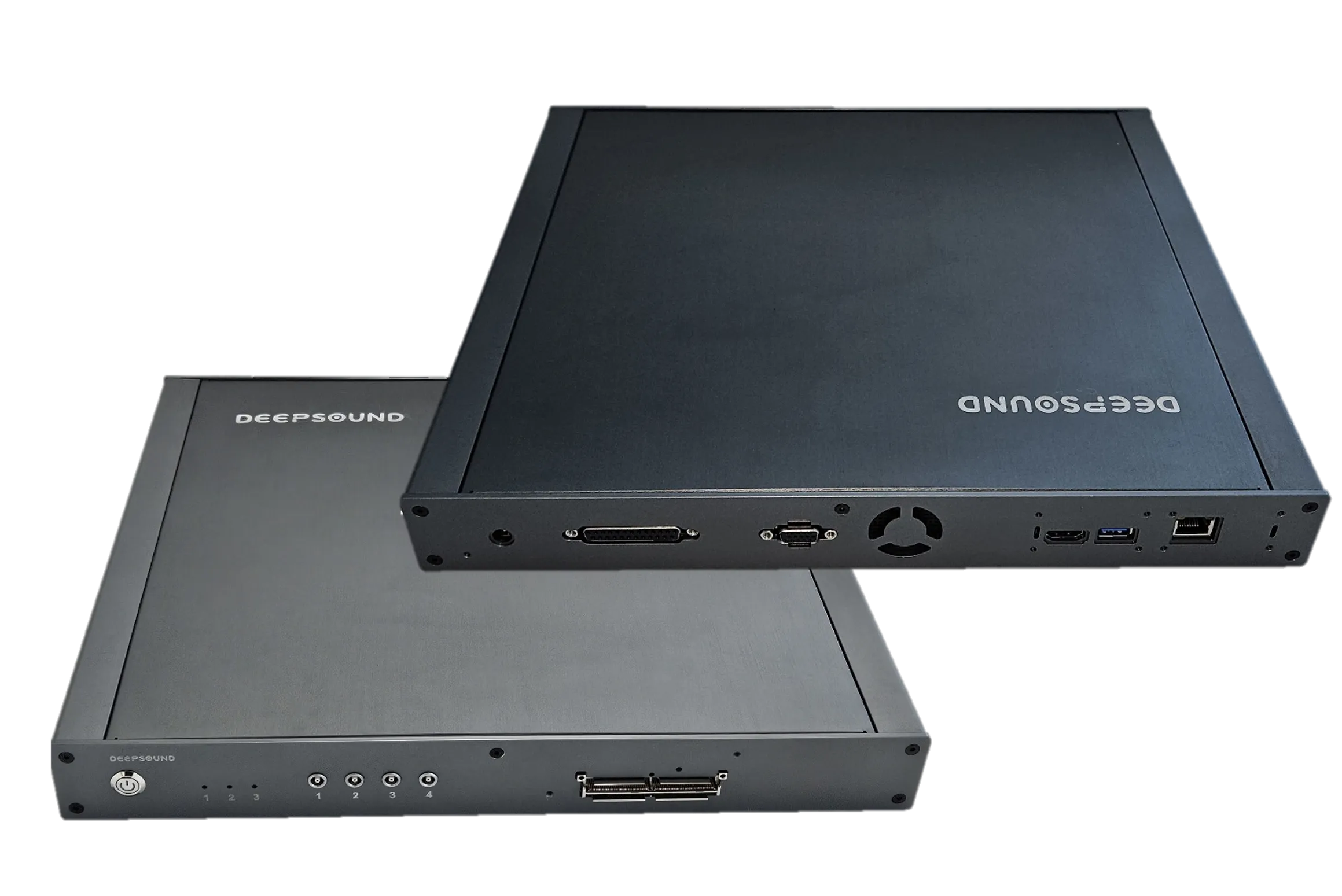

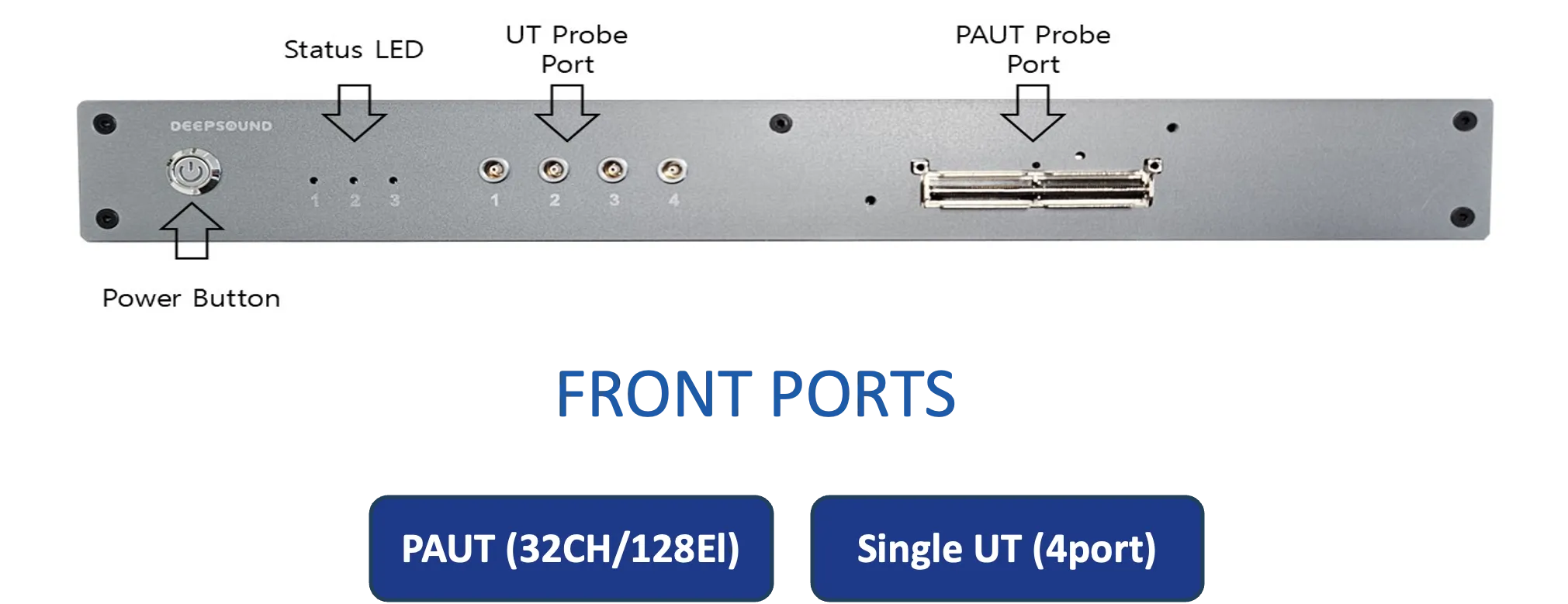

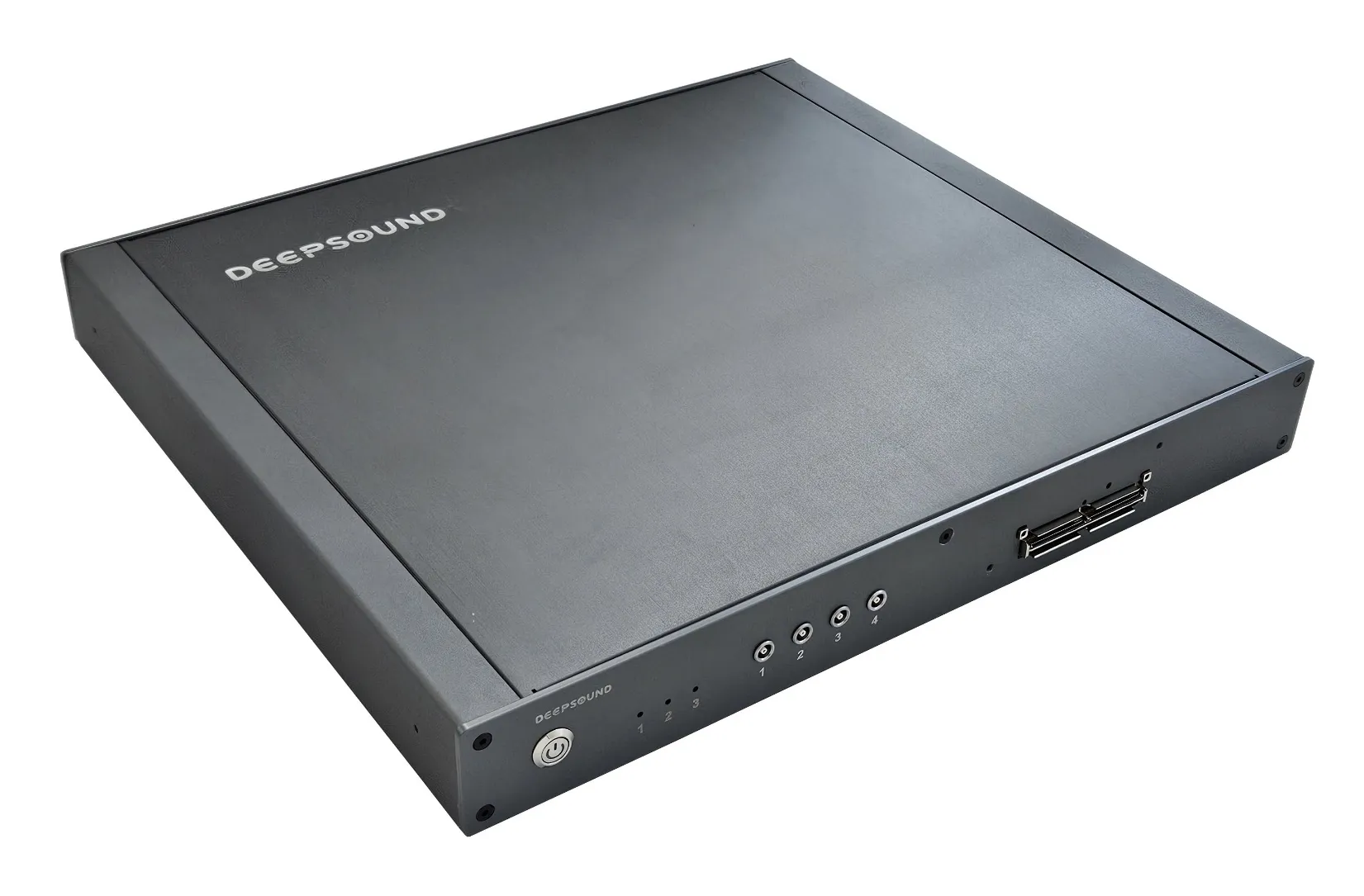

The R5 front panel is equipped with PAUT and UT connectors, Status LEDs, and a Power Button. It supports direct connections with diverse ultrasonic probes and enables users to easily monitor the data link status with the master PC.

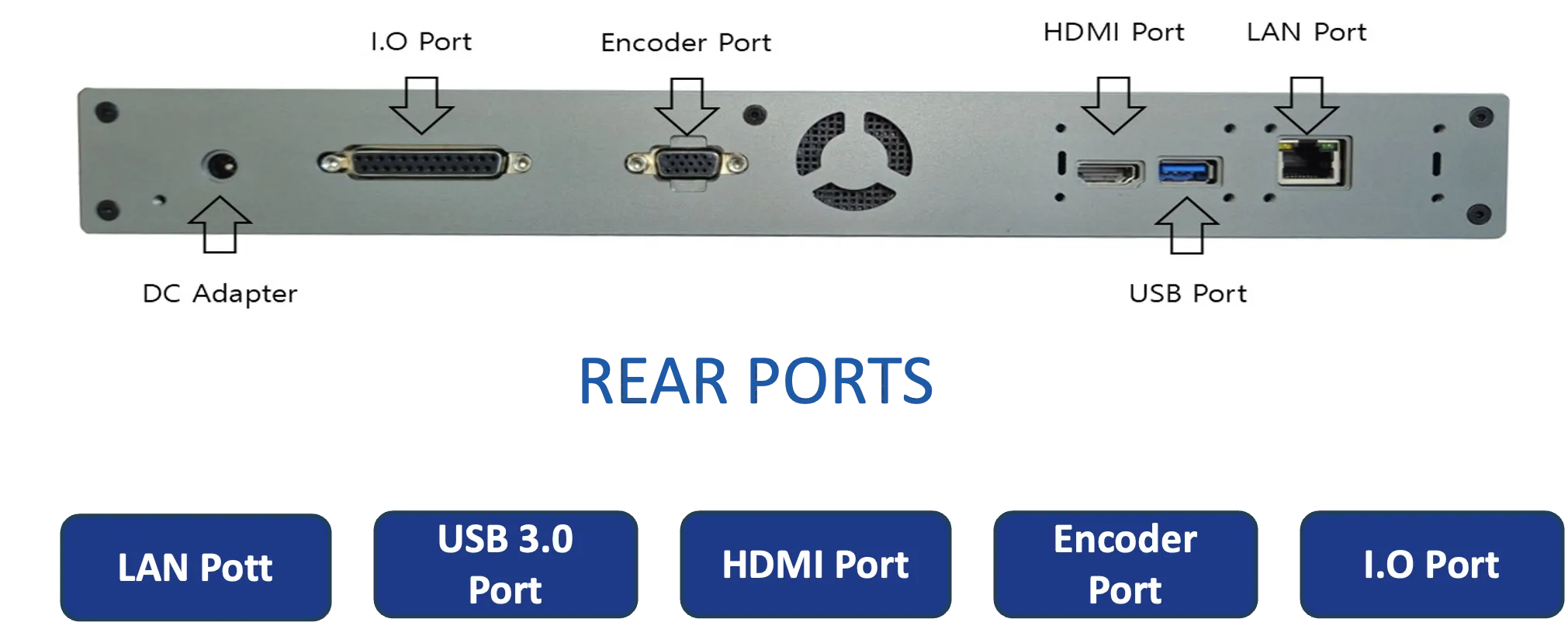

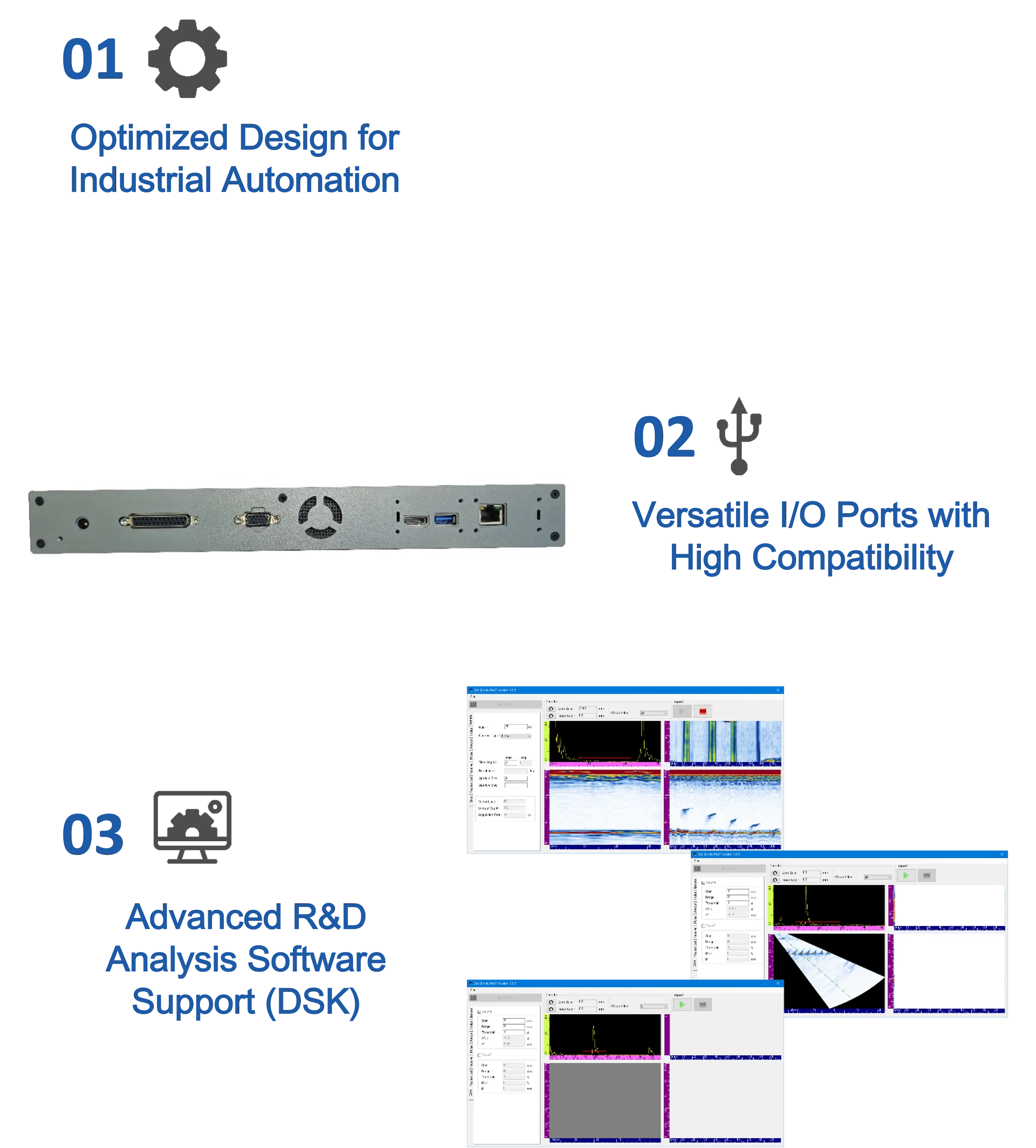

The R5 rear panel provides versatile connectivity options, including I/O ports for seamless integration with external hardware and an HDMI port for direct monitor connection and standalone control.

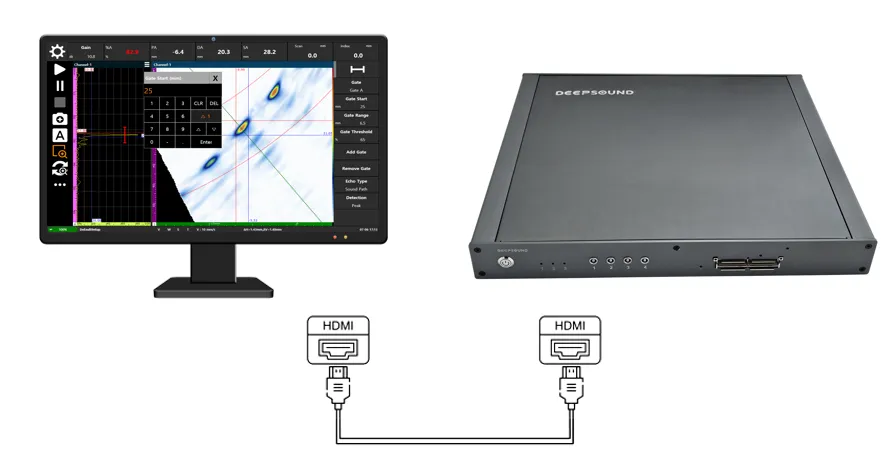

  • Standalone Operation The DEEPSOUND R5 features an onboard HDMI port.

    • Built-in internal PC
    • Runs inspection programs independently without requiring an external PC

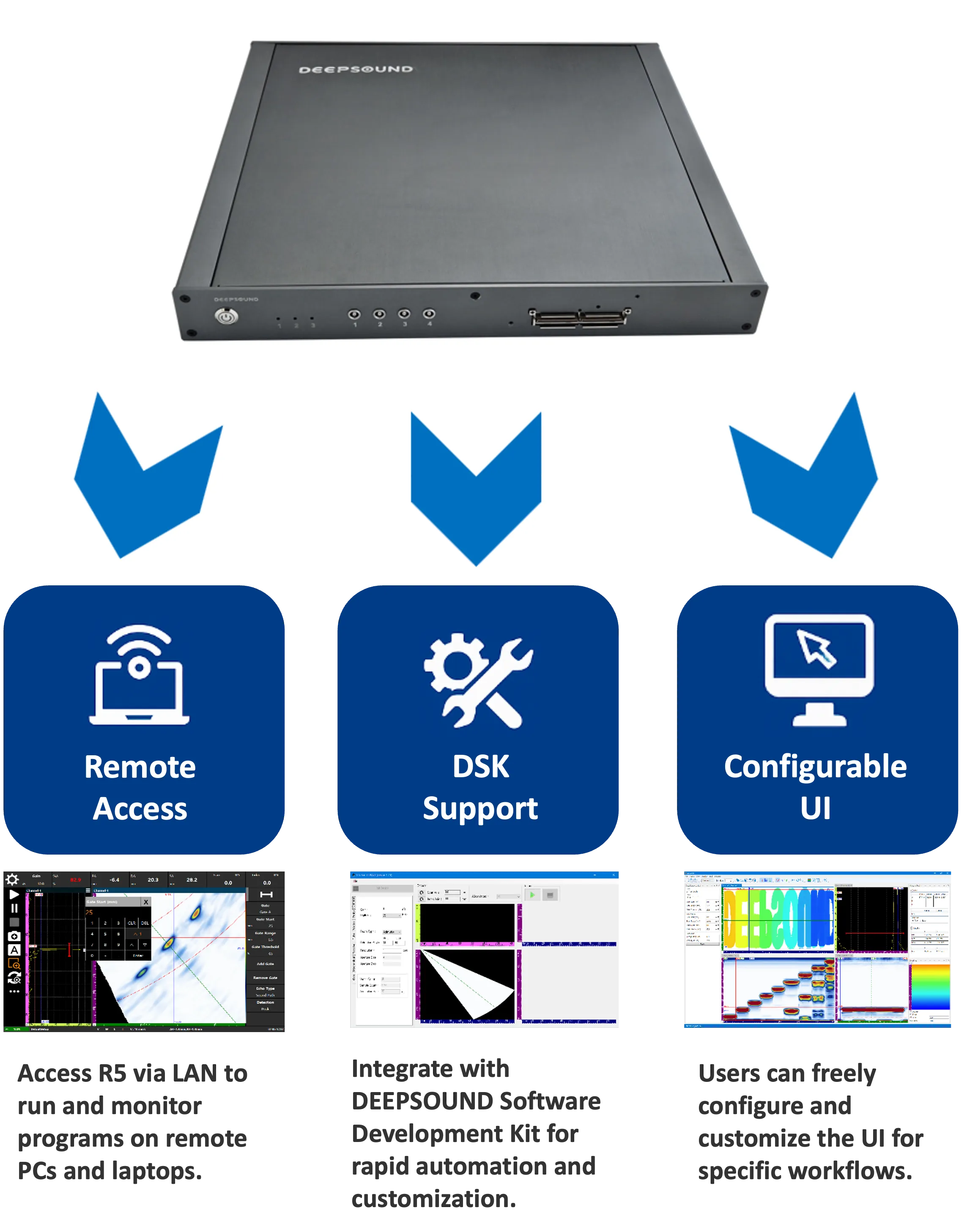

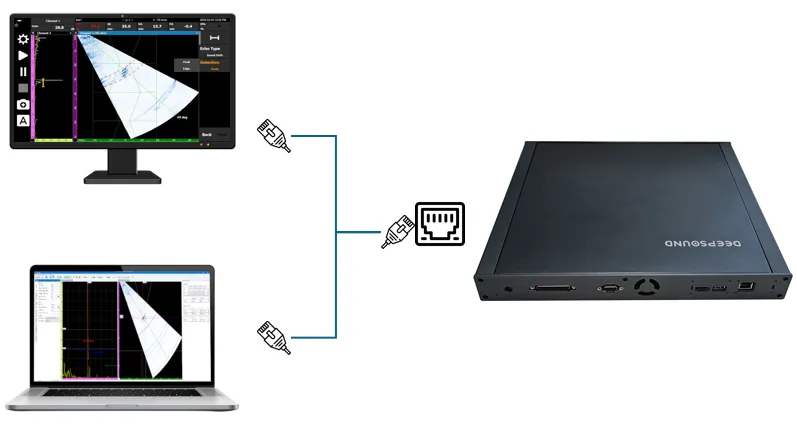

  • Remote PC Integration The DEEPSOUND R5 features a standard LAN Port.

    • Connect via the LAN port to desktop PCs or laptops
    • Run inspection software remotely
    • Ideal for managing heavy CPU workloads and accommodating flexible work environments

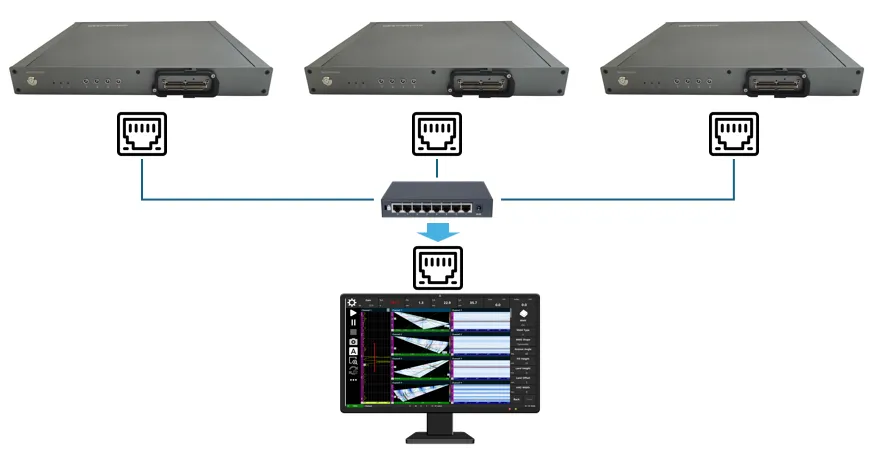

  • MOUNTED MULTI-BOARD The DEEPSOUND R5 supports a highly flexible multi-board configuration designed to fit seamlessly into a standard 19” rack system. This allows users to effortlessly scale channel capacity and build custom solutions precisely tailored to varying inspection requirements.

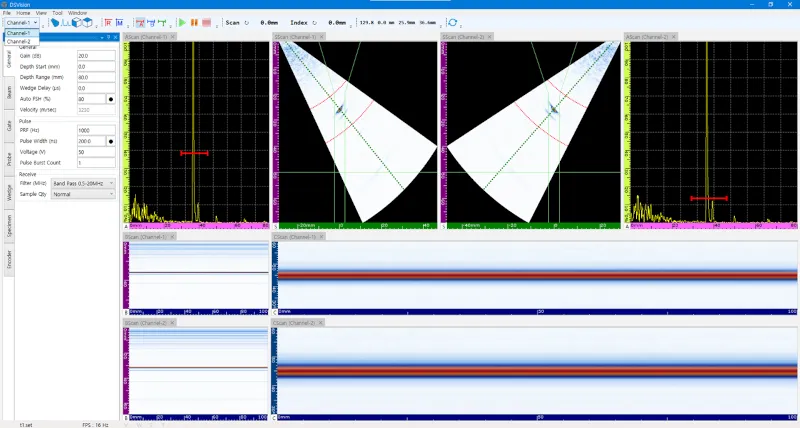

  • Advanced Software Visualization The DEEPSOUND R5 software provides multi-mode signal visualization capabilities, including A-Scan, B-Scan, and C-Scan representations. Users can easily analyze flaw detection results through clear, multidimensional data rendering, ensuring remarkably accurate and efficient inspections.

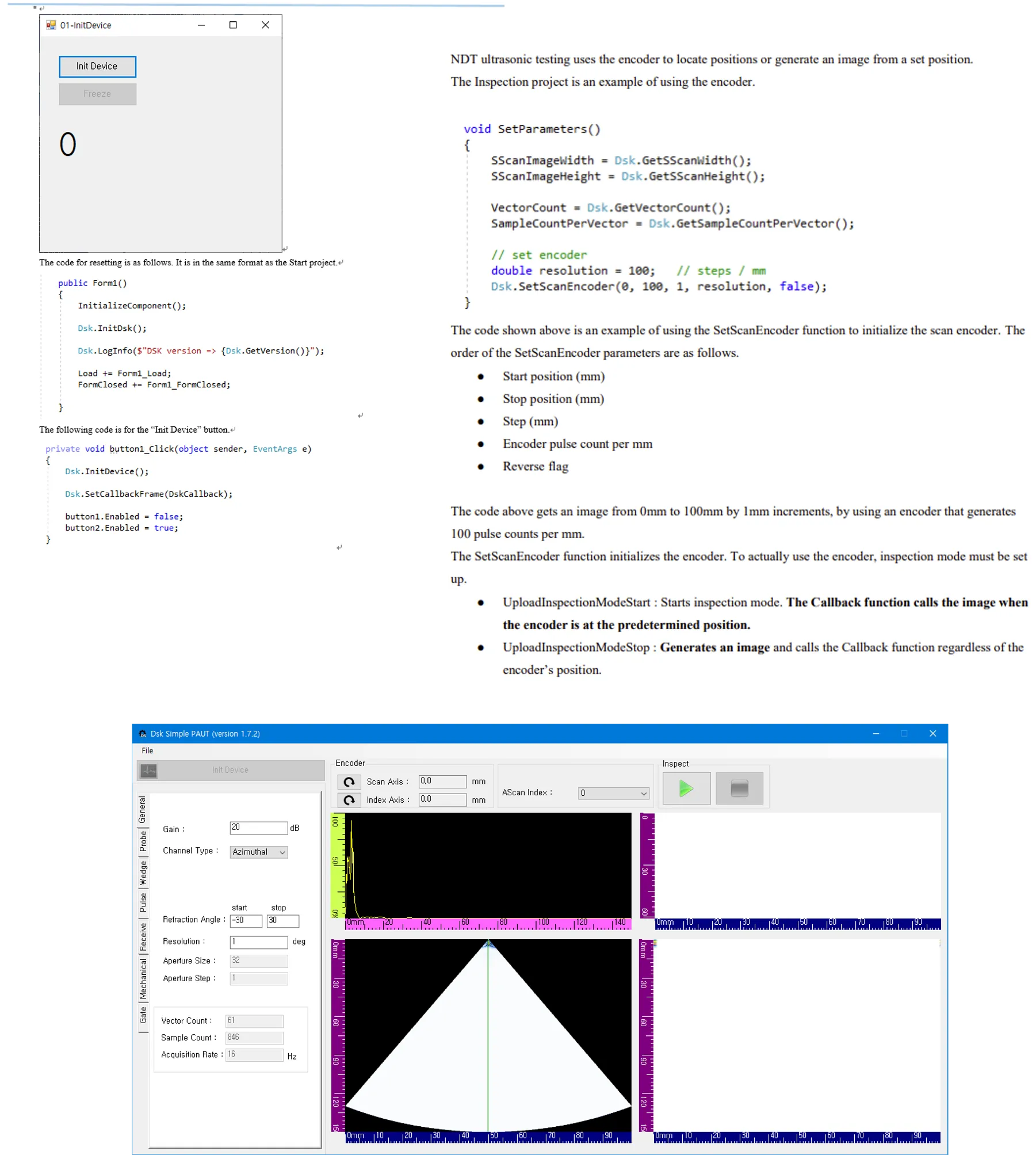

  • Flexible Development with the DSK The DEEPSOUND R5 provides a comprehensive Development Software Kit (DSK) complete with intuitive tutorials, APIs, and sample codes.

    • Customize PAUT & UT operations programmatically
    • seamlessly integrate encoder functionality with inspection control logic
    • Build and deploy uniquely specialized solutions with ease

This toolkit ensures developers and researchers have the absolute freedom required to create bespoke automation applications optimized for their specific workflow.
