B3

Section titled “B3”

Go Beyond The Limits

Section titled “Go Beyond The Limits”

High-End PAUT Performance in a Lightweight Design

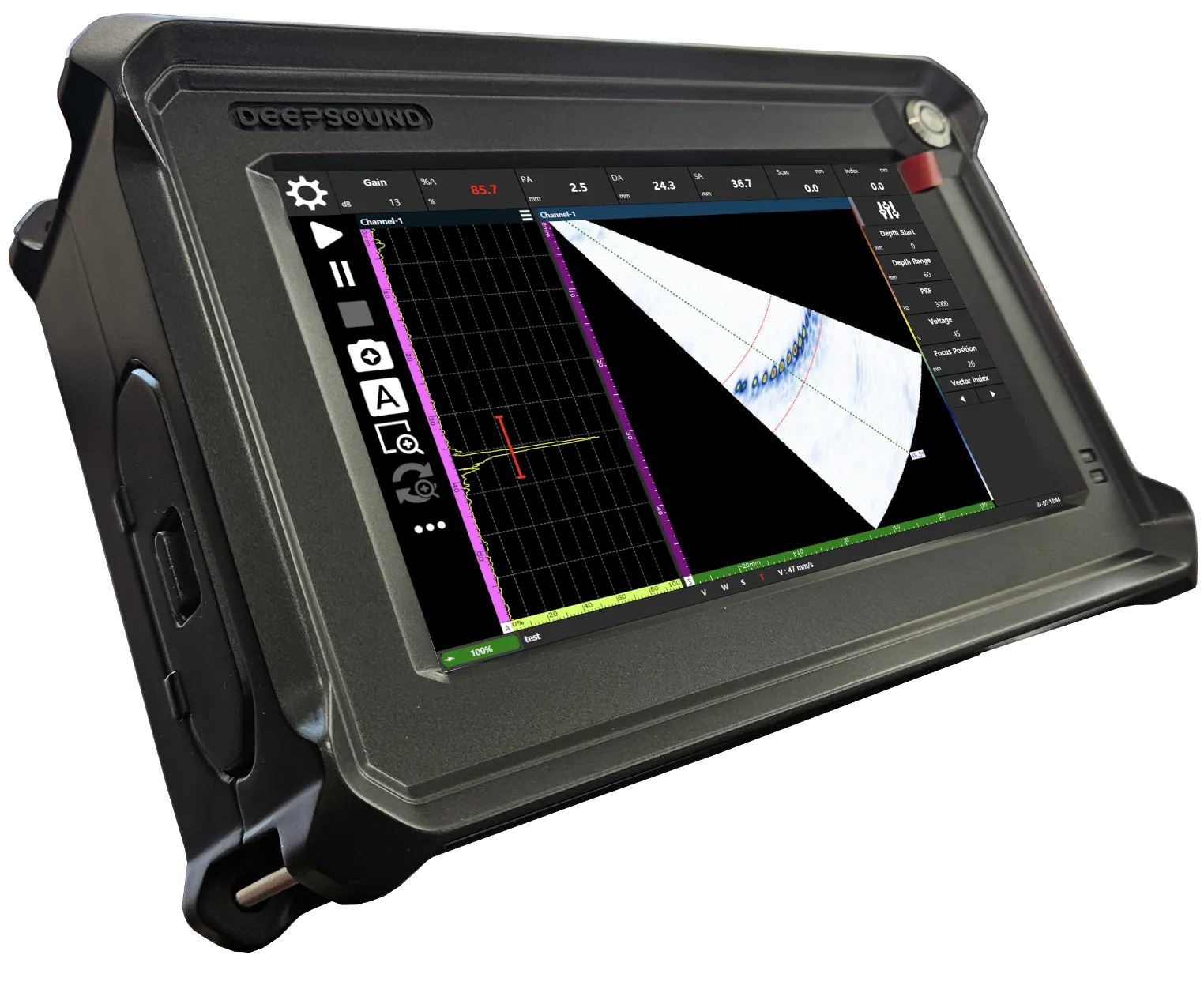

DEEPSOUND B3 LCD 7” Display Portable PAUT

Section titled “DEEPSOUND B3 LCD 7” Display Portable PAUT”

- DEEPSOUND B3 Made in Korea

Section titled “ - DEEPSOUND B3 Made in Korea”

Product Description

Section titled “Product Description”

  • DEEPSOUND B3

The DEEPSOUND B3 offers all the core advantages of a premium portable NDT device, prioritizing portability, convenience, and cost-effectiveness.

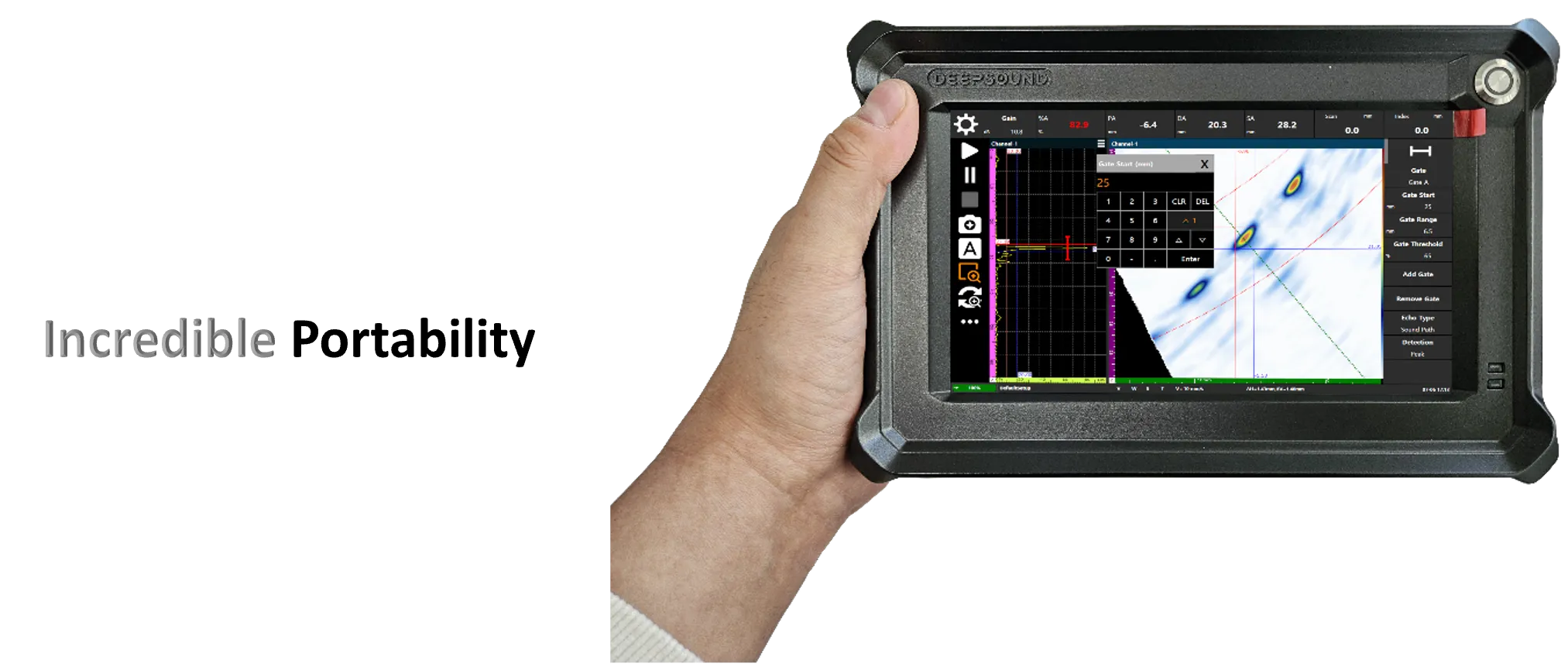

Weighing under 1 kg even with its battery installed, it is exceptionally easy to carry and operate in complex field environments.

Furthermore, the B3 runs the exact same software engine as the higher-end P5 model. This ensures no compromises are made to its performance—including advanced beam focusing capabilities—making it an incredibly cost-effective solution.

  • The proprietary software for the B3 is provided completely free of charge.

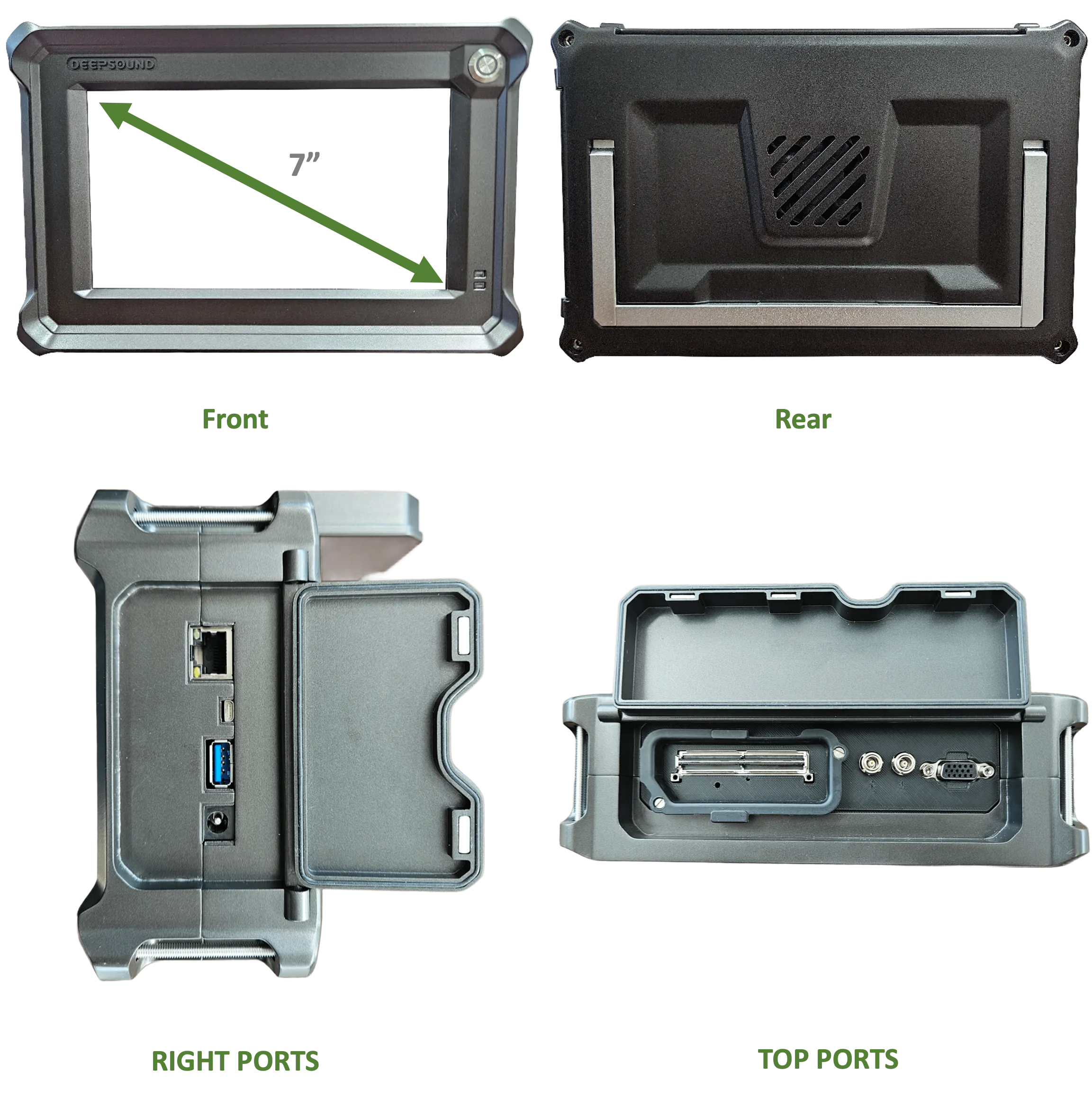

  • The Probe Port features a MiniDLP IPEX 160p connector, and the device includes 2 UT Ports.
  • It is equipped with a vibrant 7-inch display featuring a highly responsive capacitive touch screen.
  • External connectivity options include Power, USB, and Encoder ports, while the rear features a secure battery compartment and a built-in folding stand.

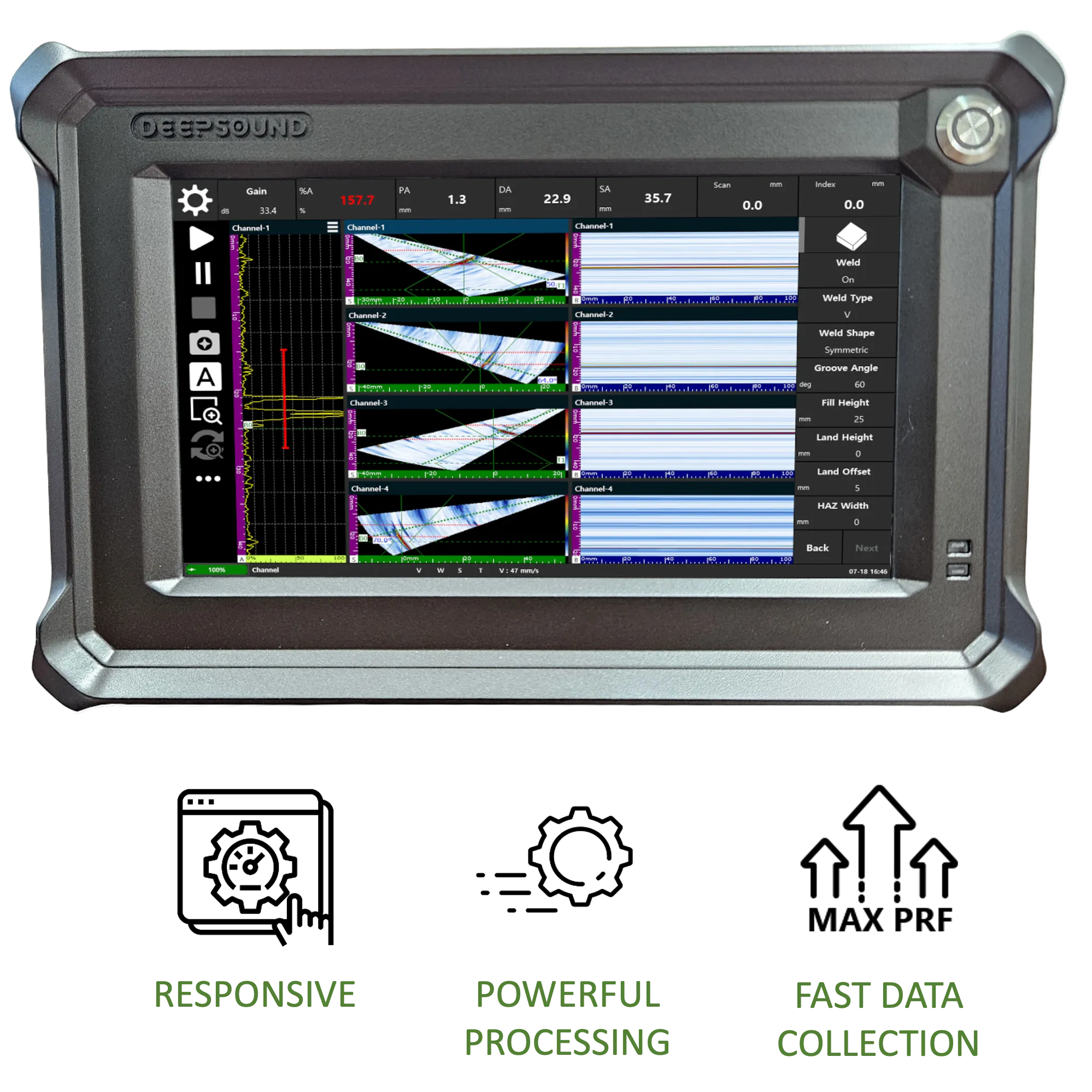

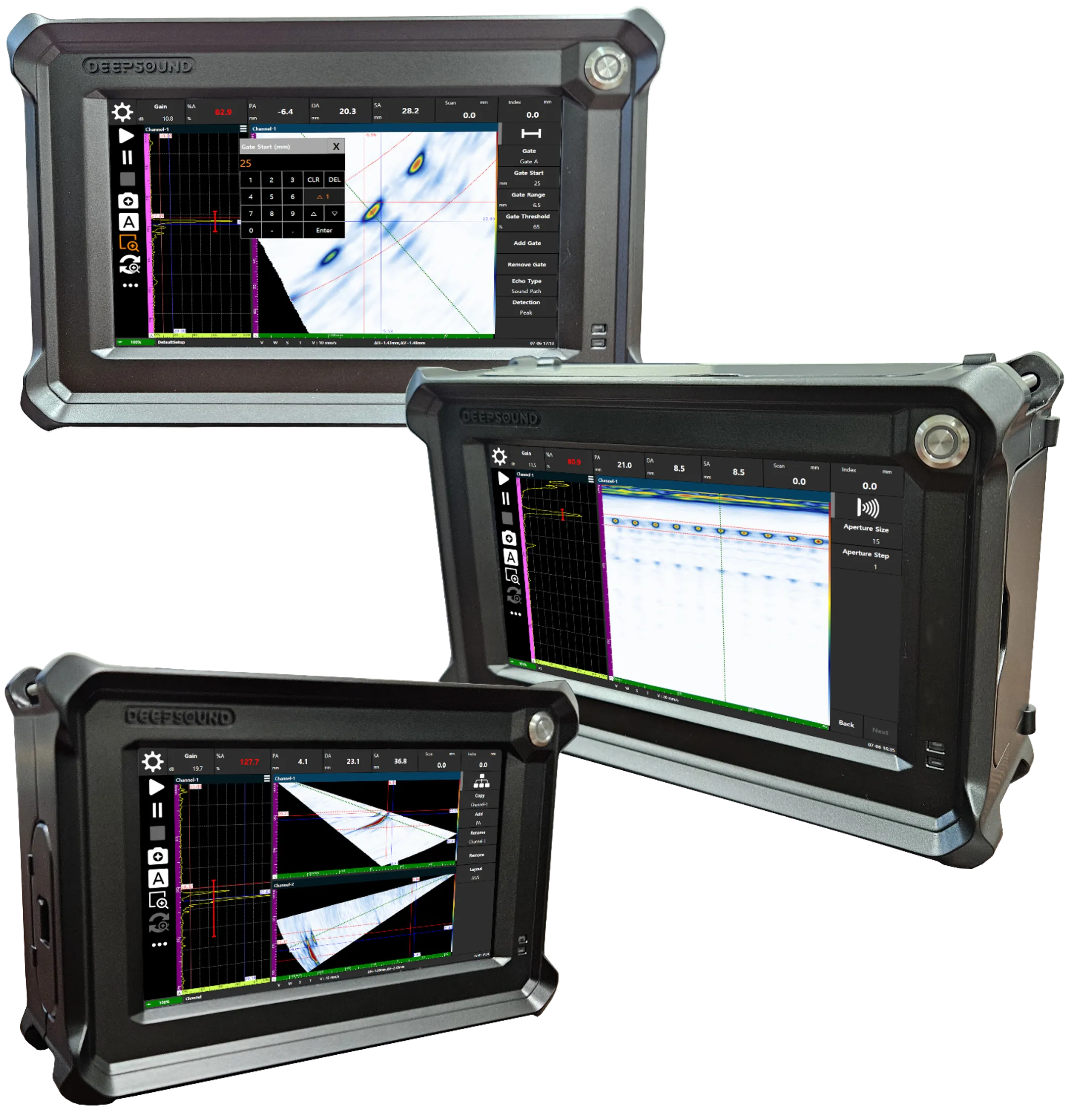

  • Instantaneous Operation Speed

Maximize your inspection efficiency with the B3’s incredible processing speed, which far surpasses other typical NDT devices.

Experience DSVision’s enhanced hardware features—such as depth control, PRF adjustments, and focal law angle changes—paired with lightning-fast processing speeds.

Furthermore, DEEPSOUND devices natively support PRF values of up to 30 kHz by default.

Run DSVision with an encoder to clearly observe the significant improvements in data collection speed.

Features

Section titled “Features”

  • A Lightweight and Compact Product The DEEPSOUND B3 features a 7” display, giving it the smallest, most streamlined form factor compared to other portable NDT devices in its class.

Weighing under 1 kg, it is comfortable to carry in one hand across any type of work environment.

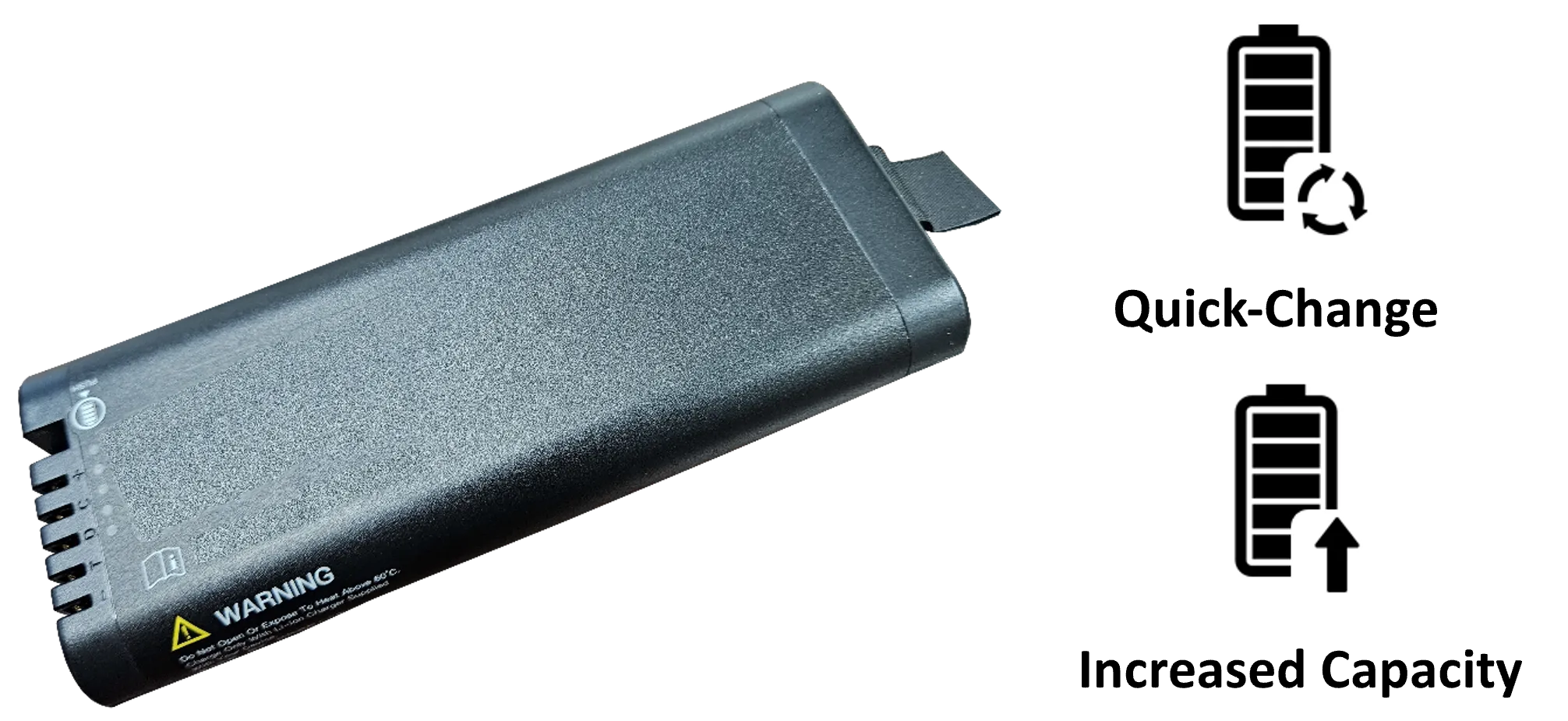

  • Portable, Quick-Charge Batteries The DEEPSOUND B3 device comes standard with one smart battery.

It is designed for rapid battery removal and replacement to minimize downtime.

The equipment allows for continuous operation through the optional application of high-capacity battery packs.

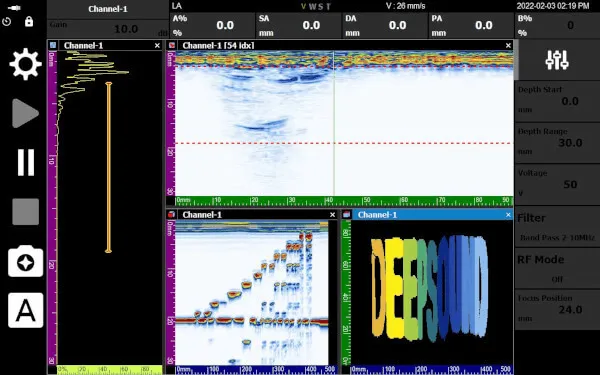

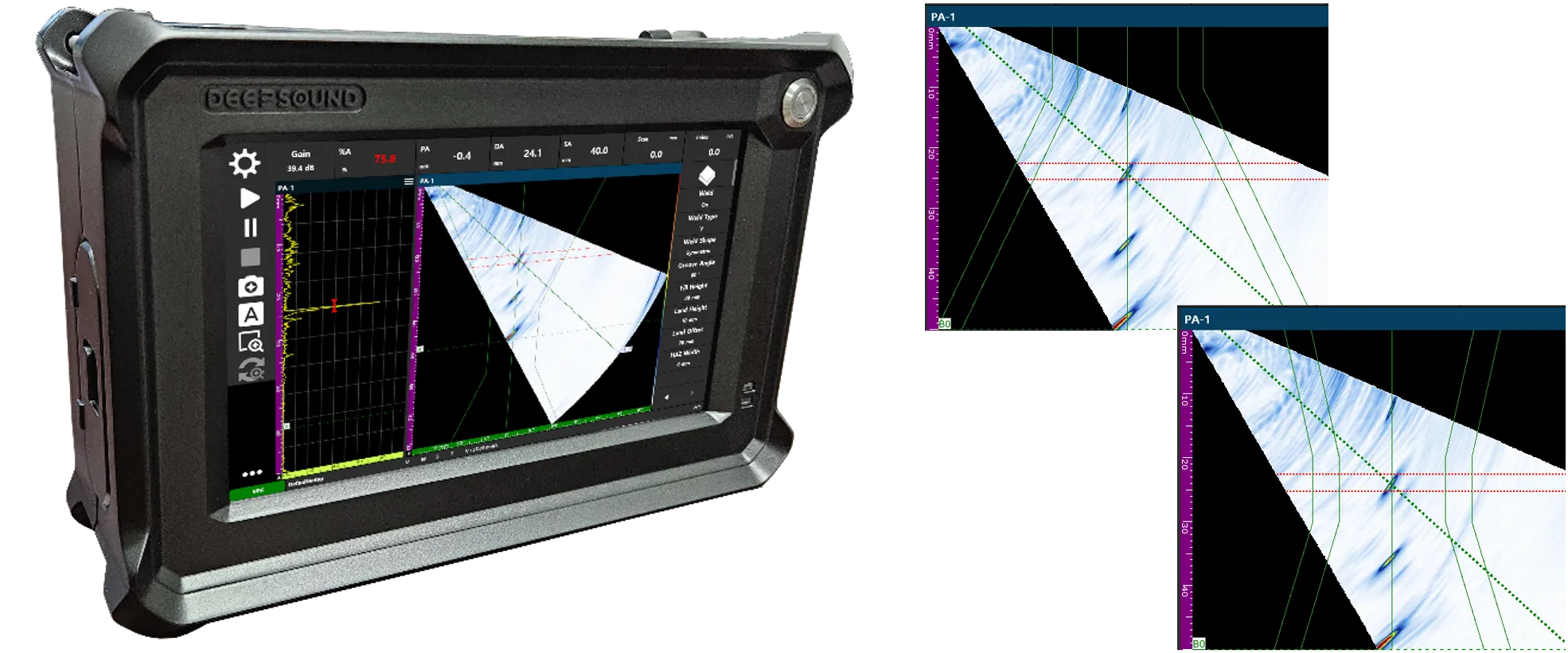

  • Difference in Beam Focusing Clearly differentiable, high-resolution, and high-image quality. Unlike other typical NDT instruments, DSVision demonstrates a visible superiority in the beam focusing of detected flaws. The high-resolution images it generates allow users to clearly differentiate between even the smallest groups of adjacent defects.

With high-quality imaging paired with the flexibility to inspect using different scan types (sectorial/linear), DSVision is a powerful and versatile tool suitable for any task at hand.

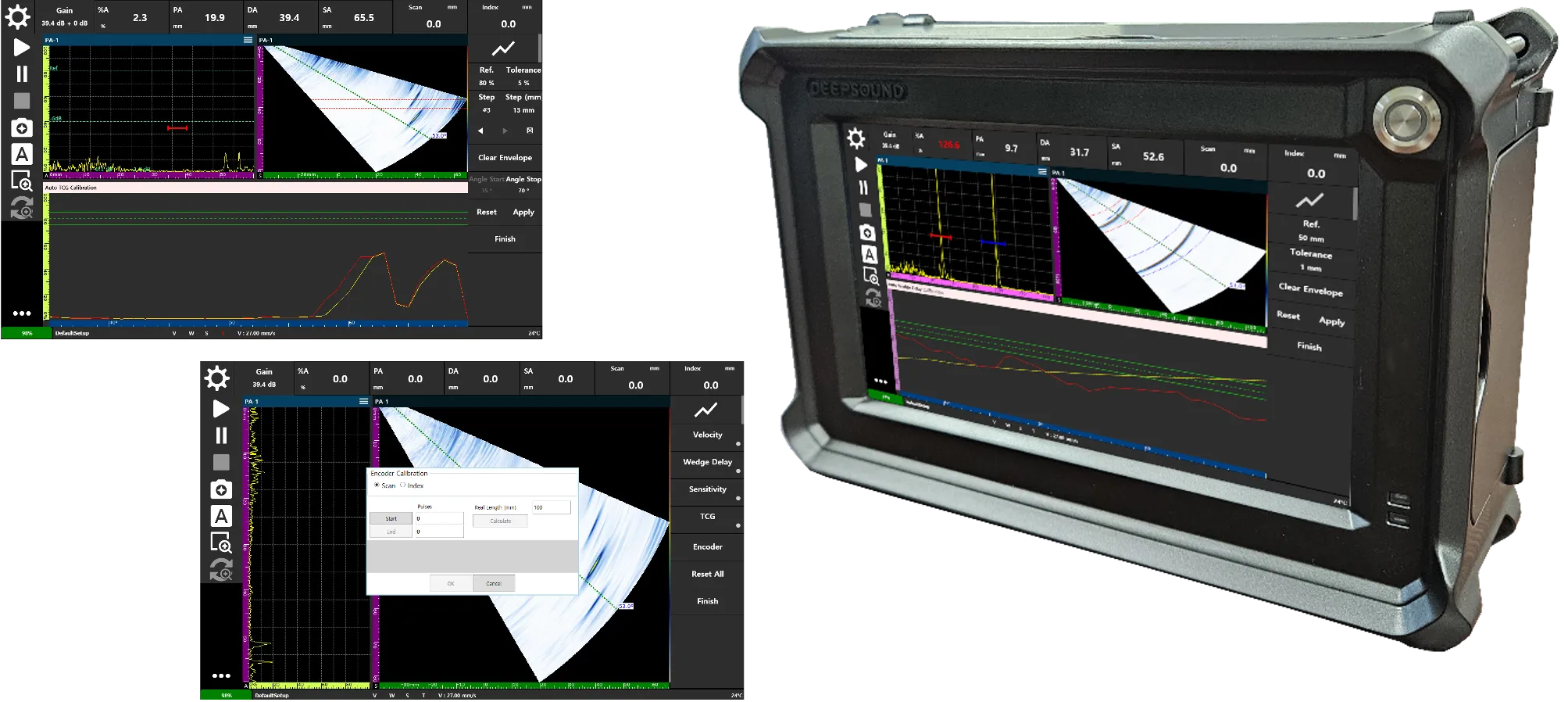

  • Calibration Tool The B3 provides comprehensive built-in calibration functions to ensure highly accurate and reliable inspection results.

These built-in calibration tools cover Velocity, Wedge Delay, Sensitivity, TCG, and Encoder calibration, ensuring precise results across varied inspection conditions.

  • Weld Drawing The B3 includes an advanced weld visualization tool that allows users to draw and configure weld profiles directly within the software interface.

Standard weld geometries such as V, Reverse V, and Double V can be easily selected and applied, enabling an accurate representation of actual field welds.

In addition, the software supports HAZ (Heat Affected Zone) width visualization, allowing users to clearly define and display heat-affected areas adjacent to the weld.

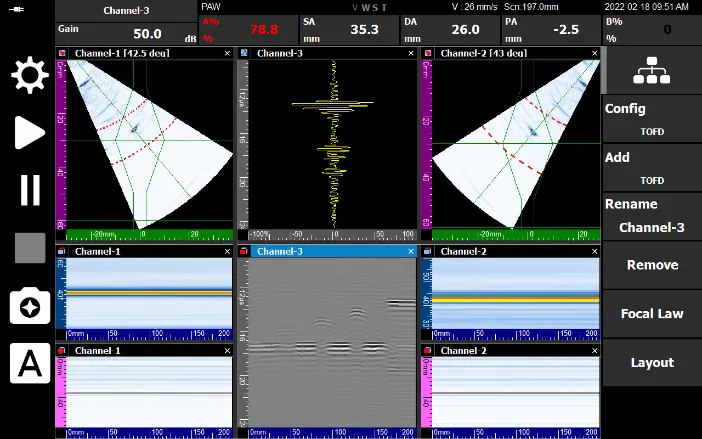

  • Utilizing Channel Groups DSVision fully supports customizable Channel Groups.

The program also natively supports TOFD, enabling users to create and manage various complex configurations, including simultaneous PAUT + TOFD setups.

  • Thickness Measurement DSVision is fully capable of profiling variations in corrosion thickness.

These thickness deviations are intuitively distinguished via a color-mapped display. The inspected data can be further evaluated and analyzed using DEEPSOUND’s dedicated analysis software, DSViewer.
