Comparison of Immersion Testing Equipment
Section titled “Comparison of Immersion Testing Equipment”- The following specifies the equipment, Probe, and Wedge used to conduct the Immersion testing. During the measurement process, the margin of error for defect detection between the devices will be directly compared.
- DEEPSOUND P5
-

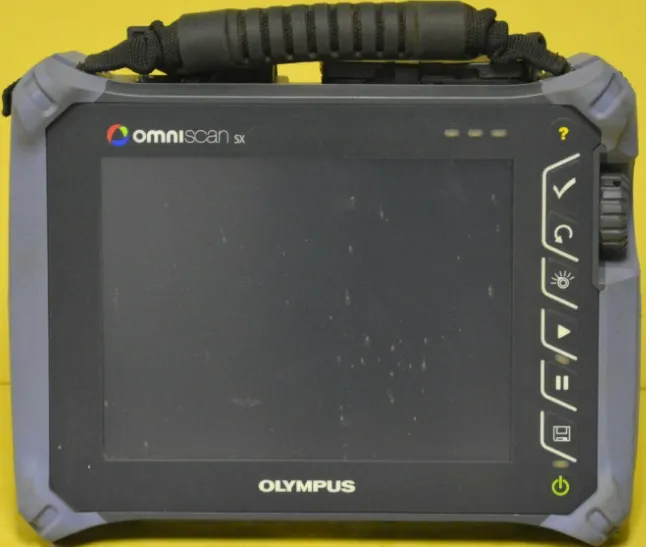

Third-Party Equipment
-
Probe Specifications
- Probe Model: 5L128-I2
- Probe Pitch: 0.6 mm
-
Wedge Specifications
- Wedge Type: Water (Immersion)
Sample & Parameters
Section titled “Sample & Parameters”- Both devices were configured with the parameter values shown below to identify defects within the sample specimen.
Flaw Detection Comparison
Section titled “Flaw Detection Comparison”- After setting up the immersion environment and executing the defect measurements, the resulting margins of error for each device were confirmed as follows:
| Sample Defect Location | DEEPSOUND P5 | Range of Error | Third-Party Equipment | Range of Error |
|---|---|---|---|---|
| 25.00 mm (SA) | 25.60 mm (SA) | +0.60 mm | 24.62 mm (SA) | -0.38 mm |

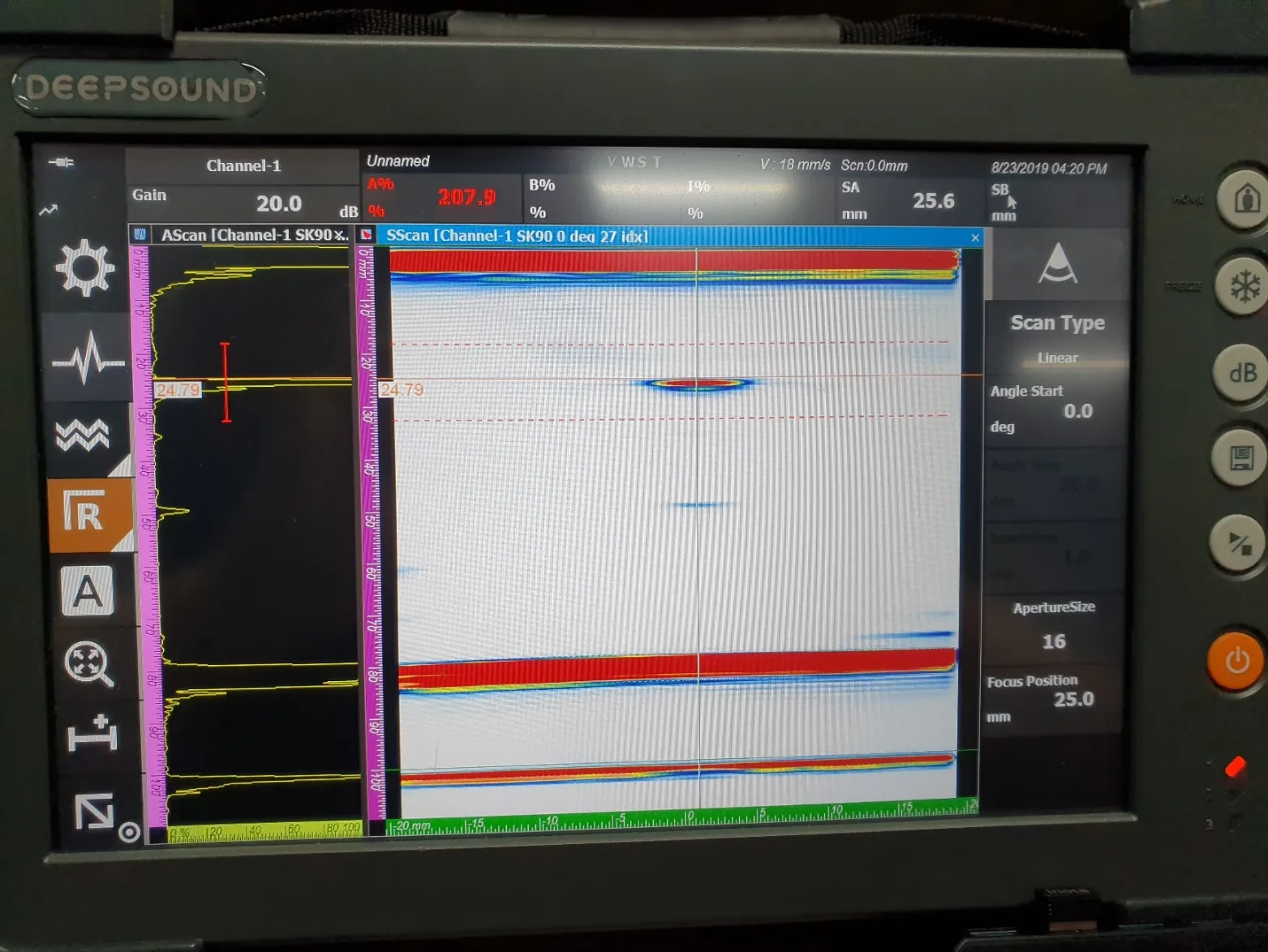

- DEEPSOUND P5

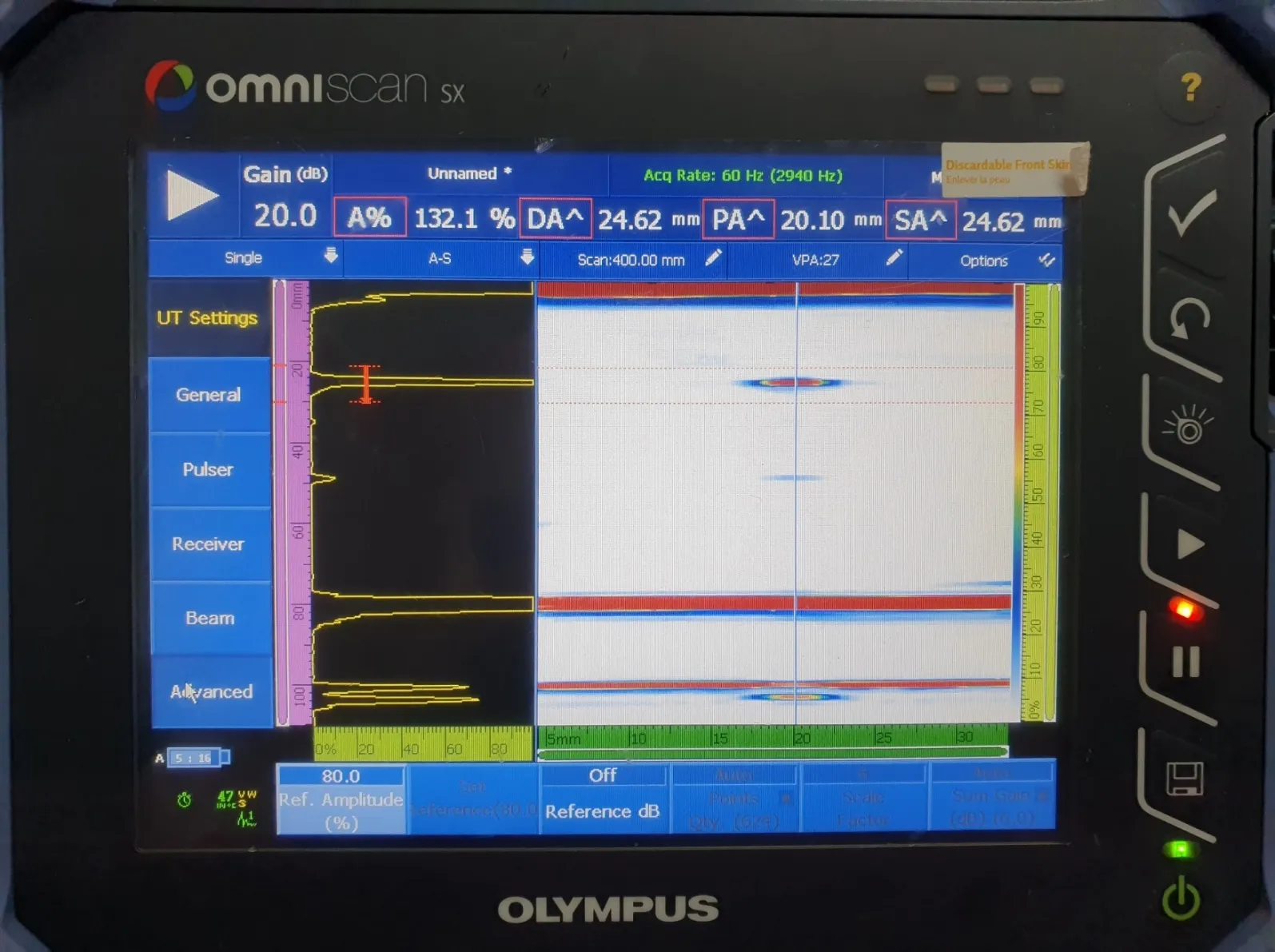

- Third-Party Equipment
Conclusion
Section titled “Conclusion”- Comparison of Immersion Flaw Detection results from DEEPSOUND P5 and Third-Party Equipment
- In terms of evaluating defect locations, both devices demonstrated highly comparable performance, yielding results with similar ranges of marginal error.
- Furthermore, both the DEEPSOUND P5 and the Third-Party Equipment displayed effectively identical A-scan signal patterns.
