PAUT & DA Comparison Wedge Delay Calibration

• A comparative test between third-party equipment and the DEEPSOUND P5 to verify defect location accuracy and the impact of calibration.

---

Test Setup

• The probe and wedge configurations for both systems are detailed below:

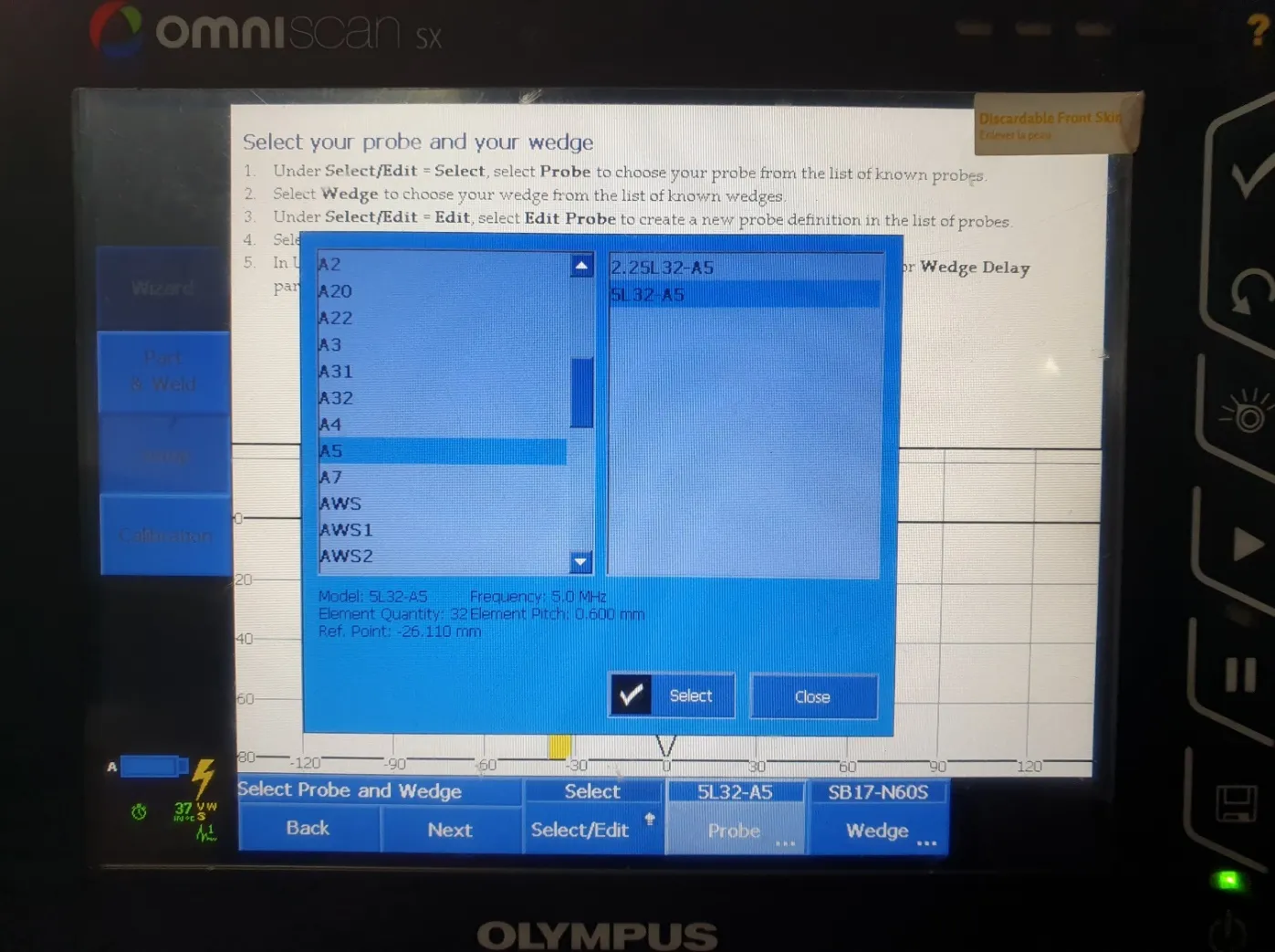

• Third-Party Equipment Probe Specifications

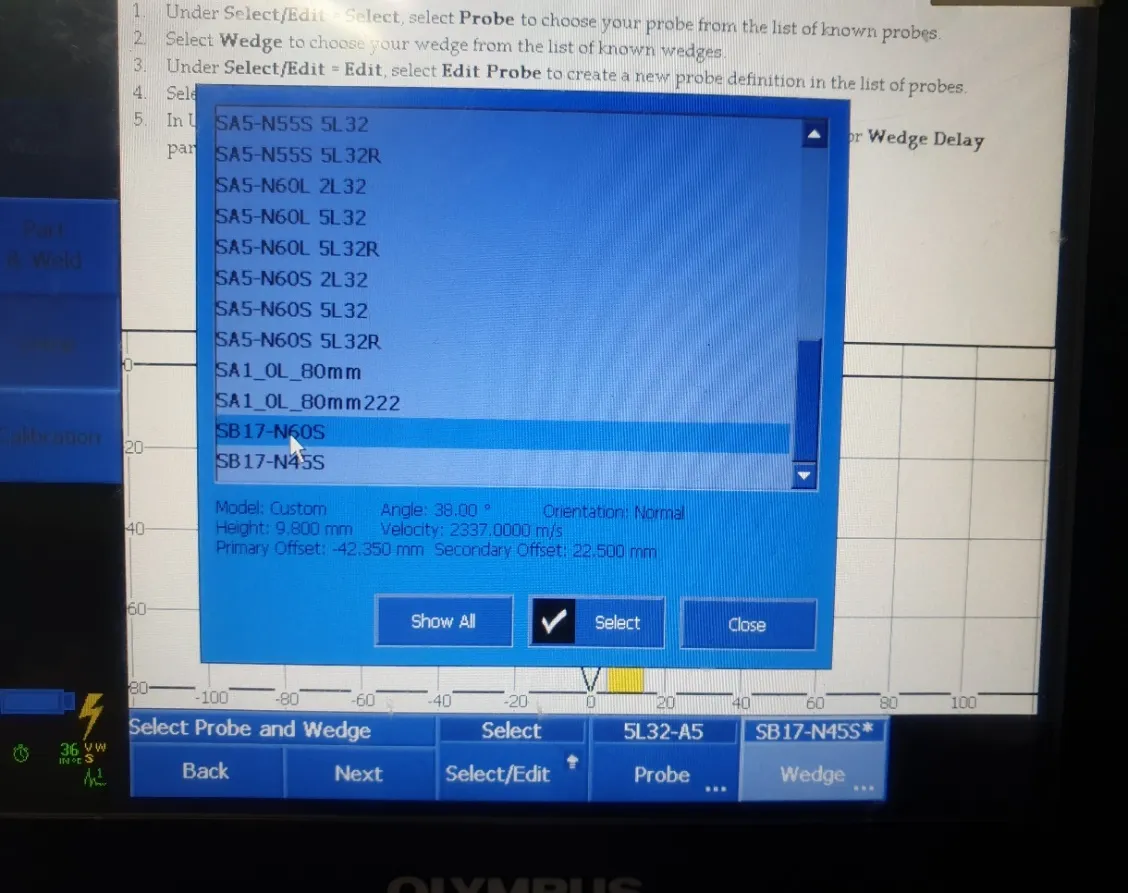

• Third-Party Equipment Wedge Specifications

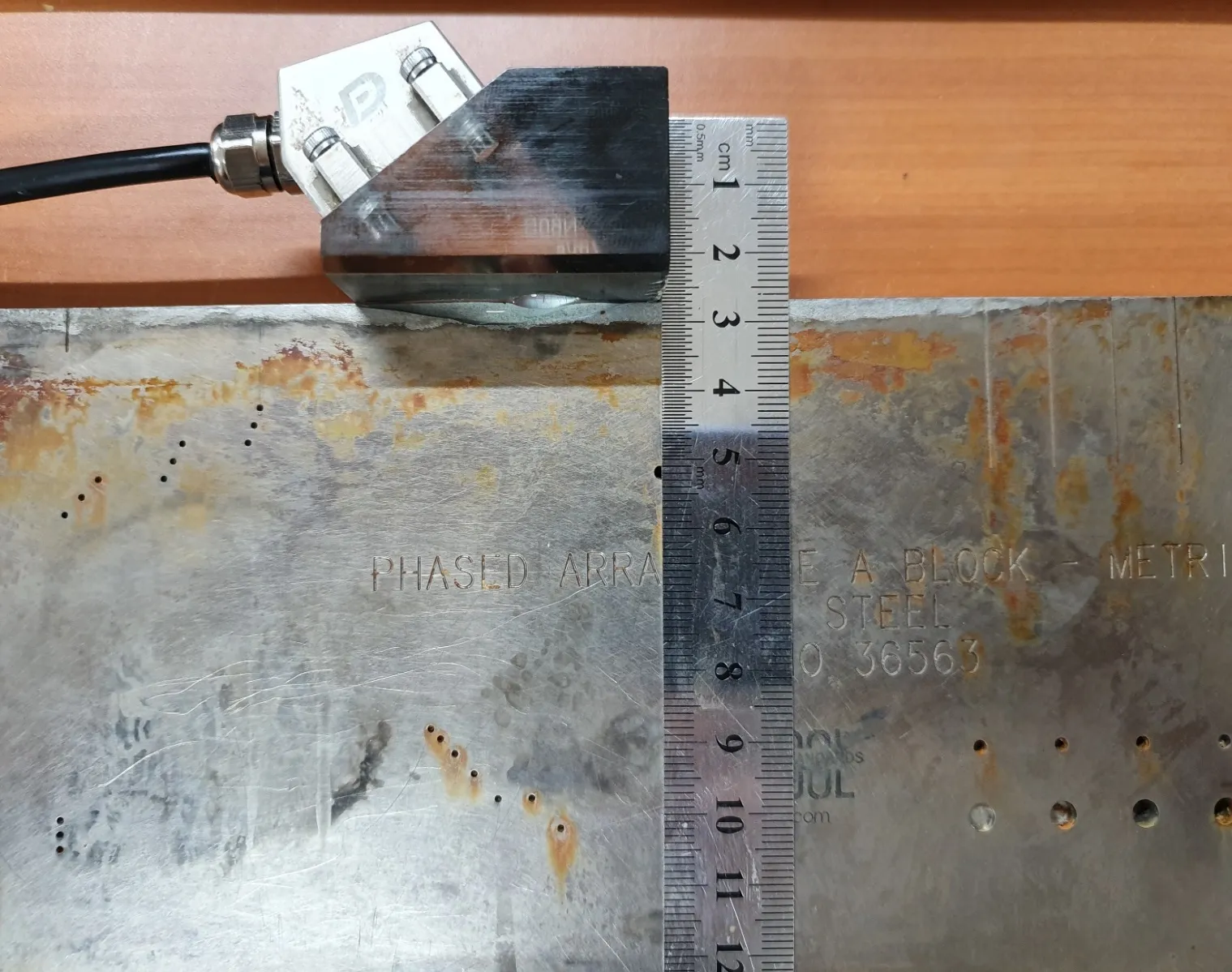

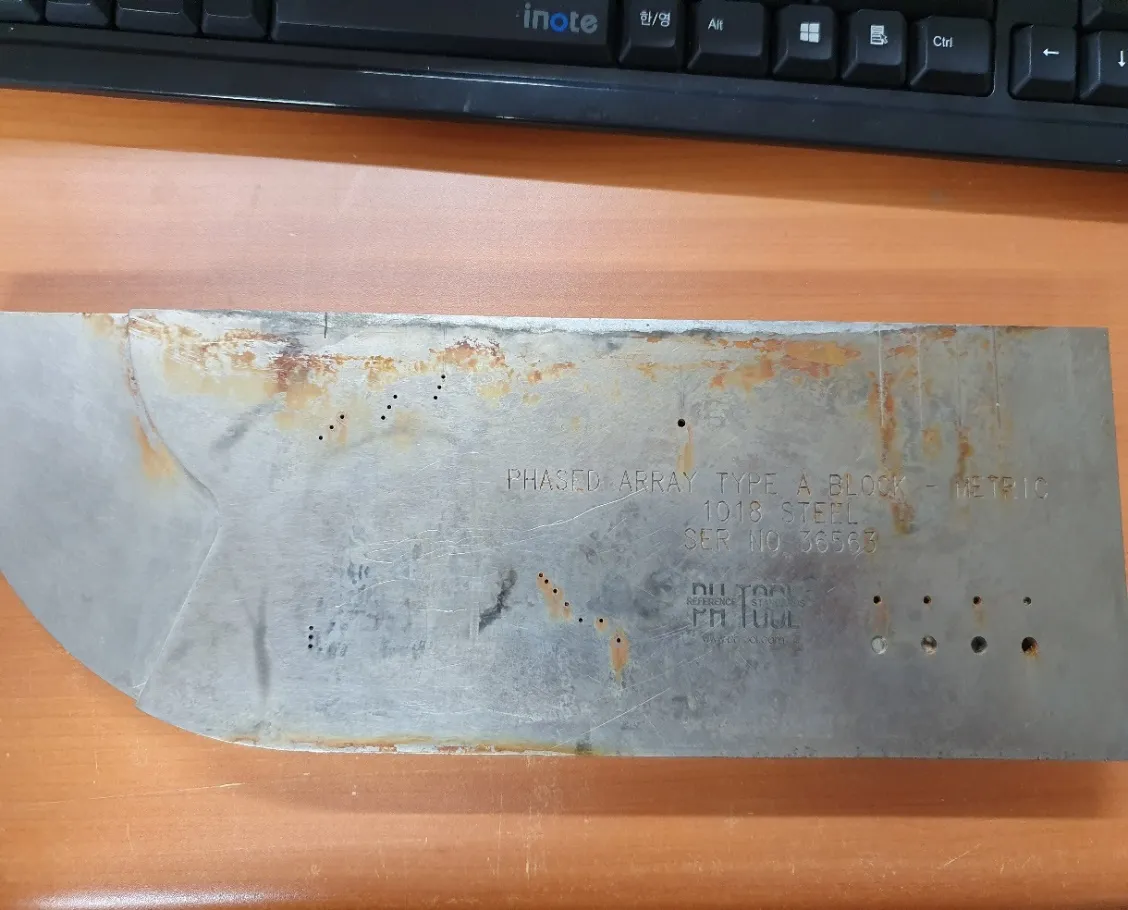

• Test Specimen

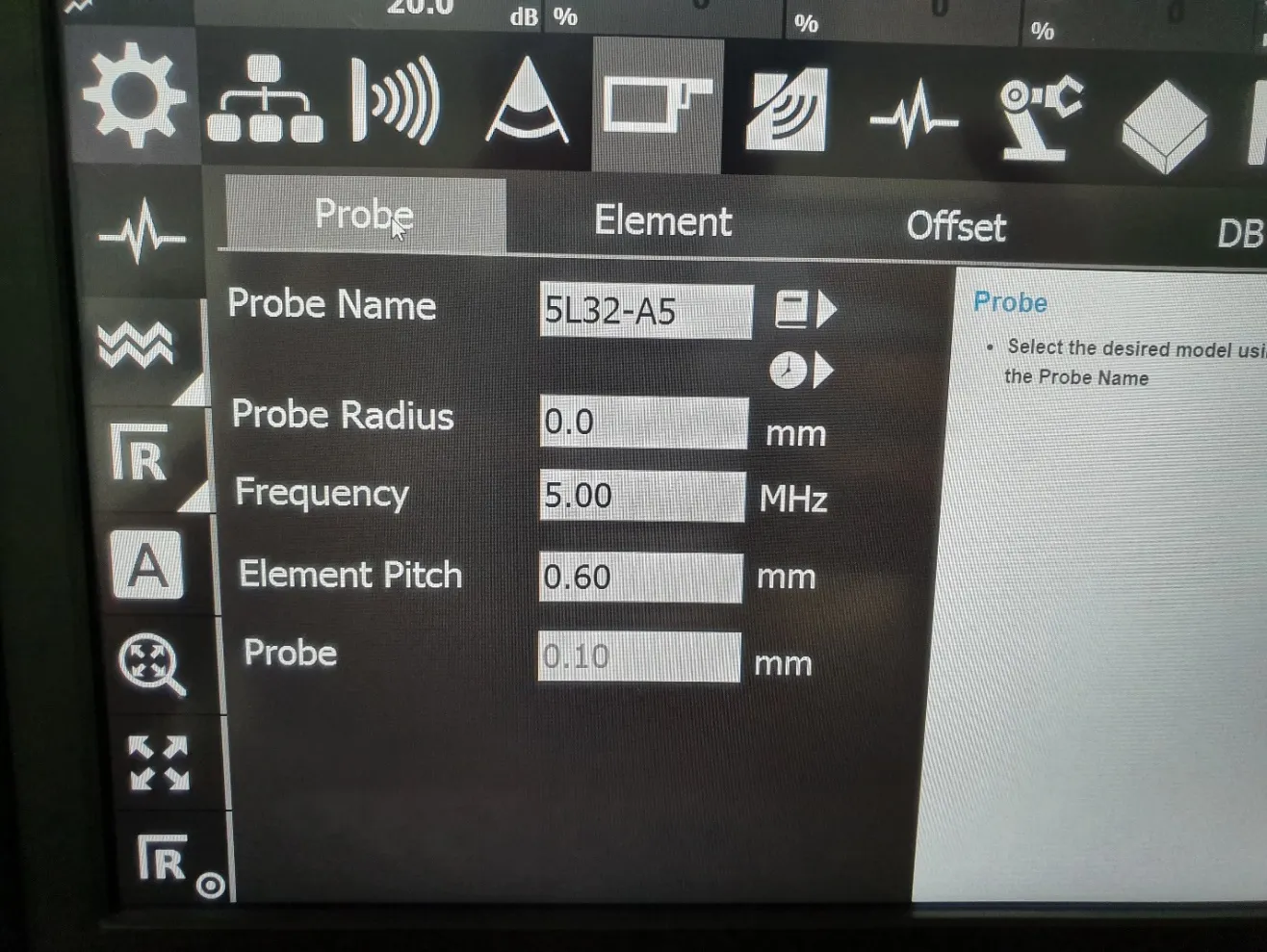

• P5 Device Probe Specifications

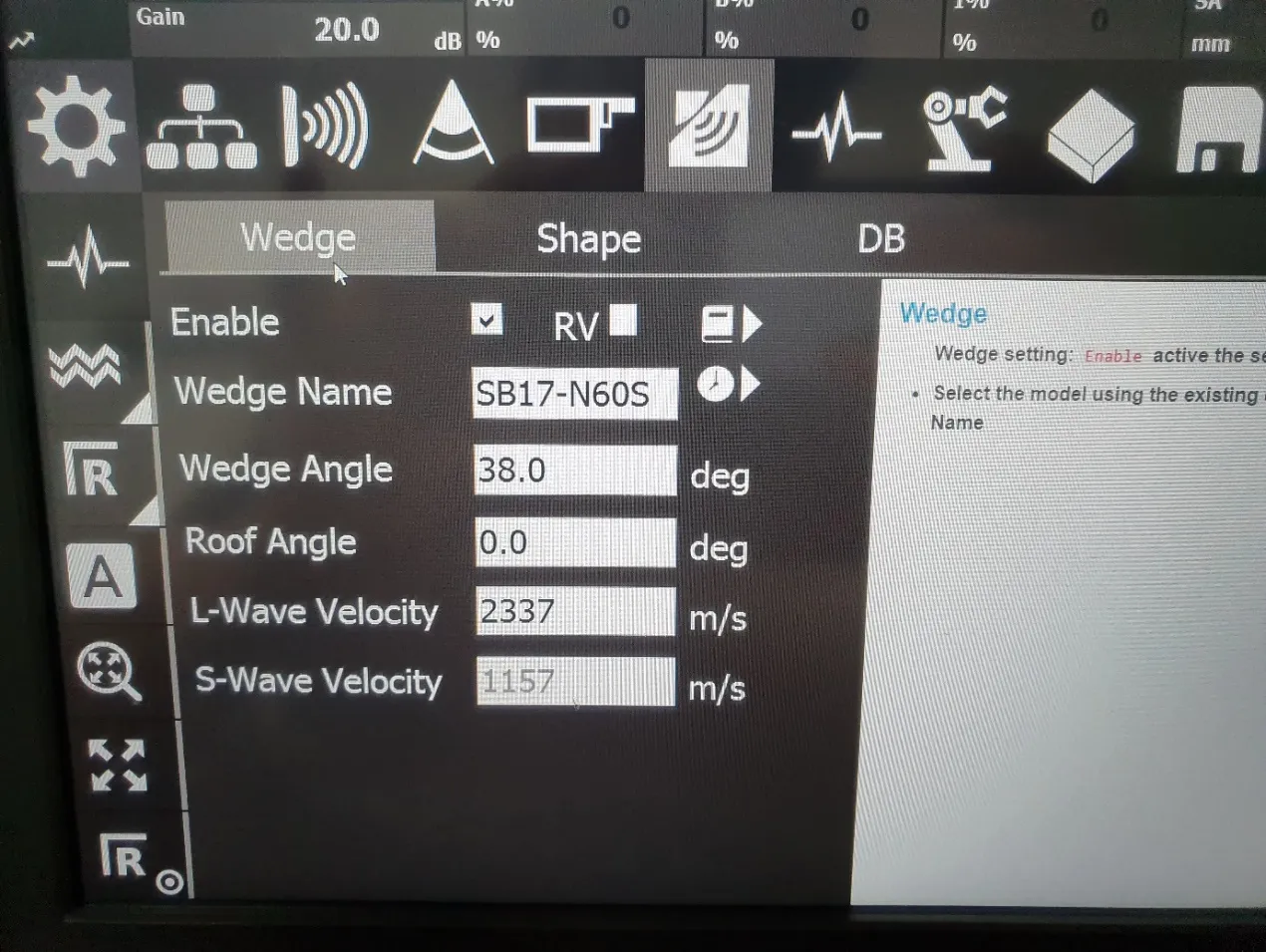

• P5 Device Wedge Specifications

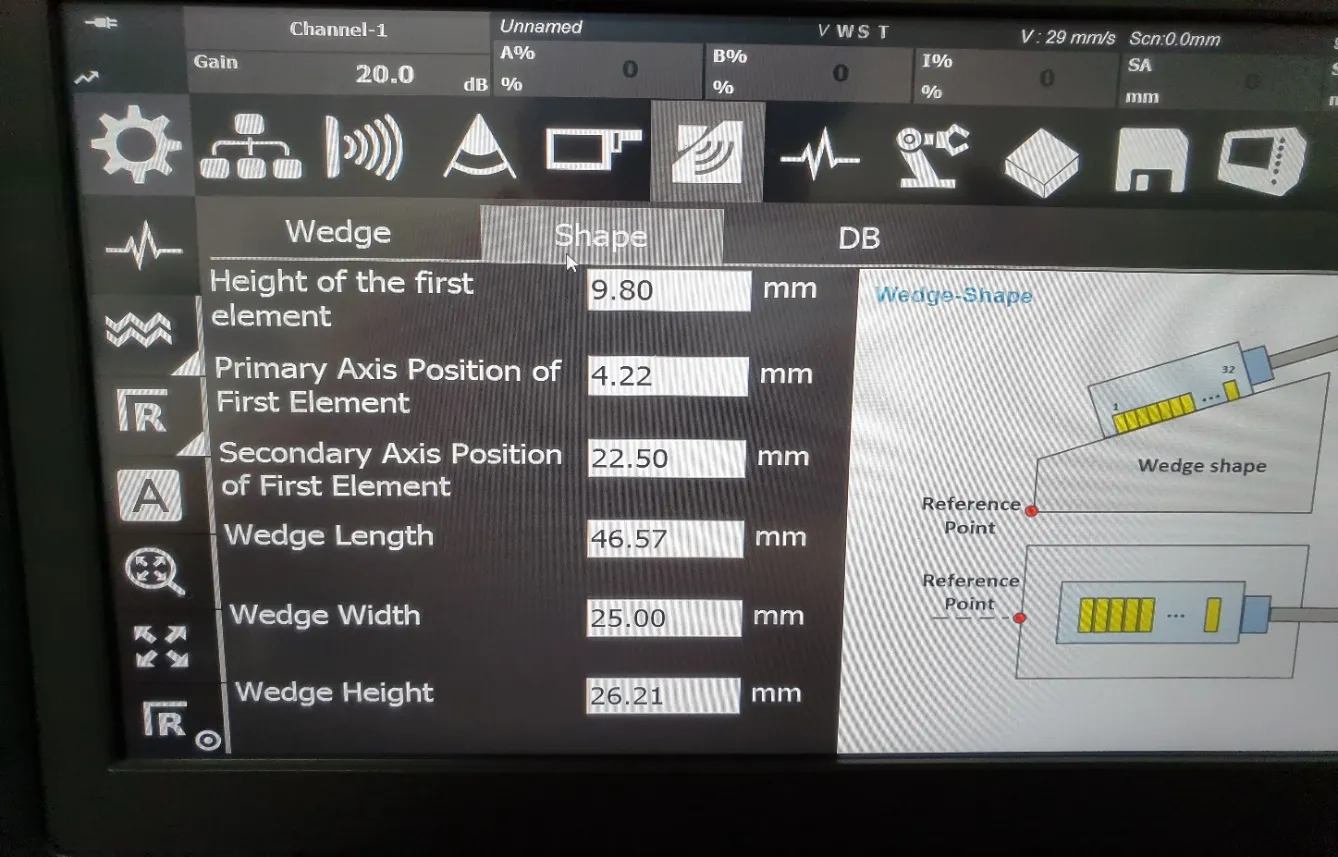

• P5 Device Scanning Configuration

---

PA & DA Comparison: Defect Identification

• The parameters and defect measurement criteria for the third-party equipment and the DEEPSOUND P5 were established and verified as shown below:

---

Image Results

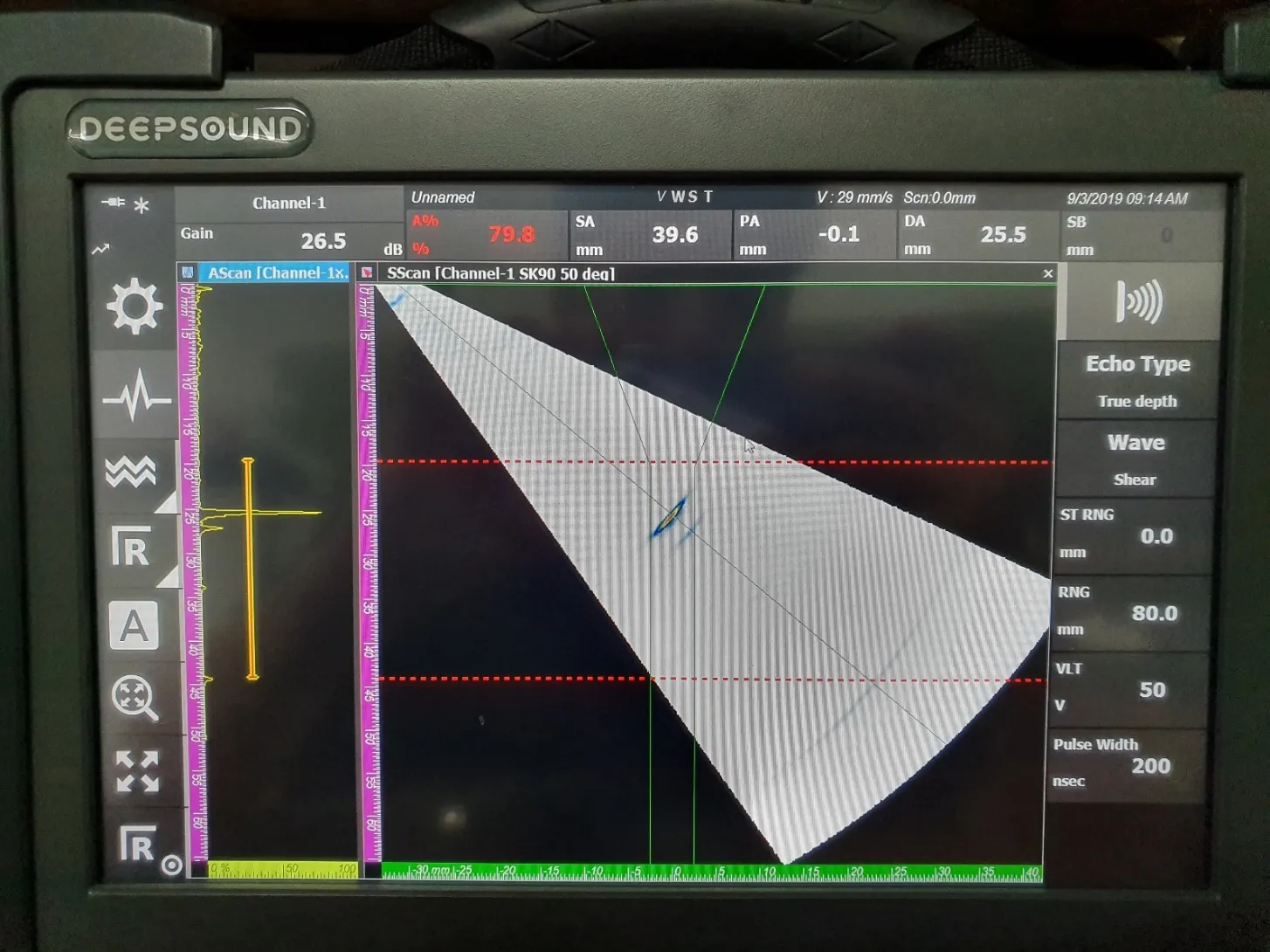

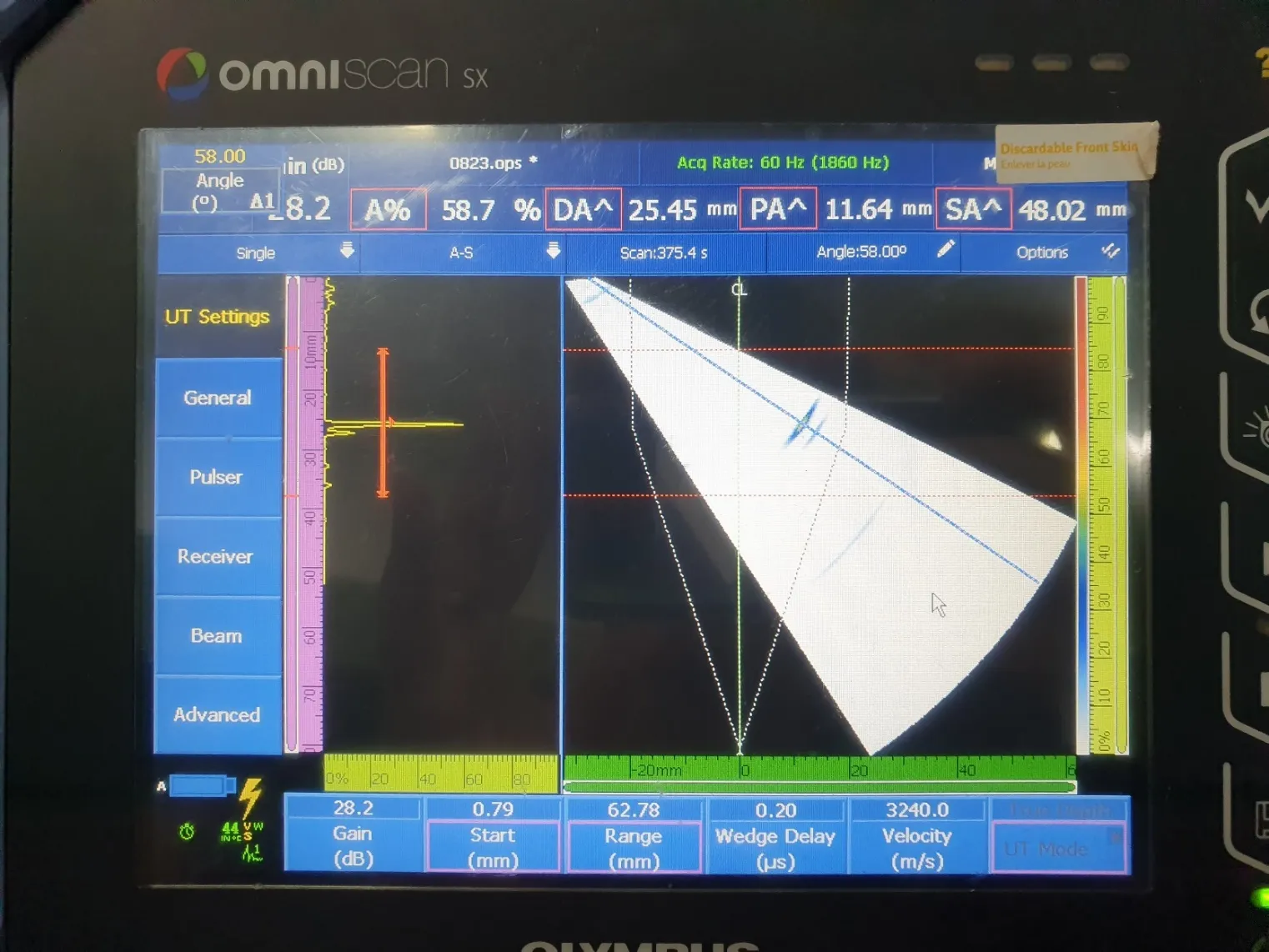

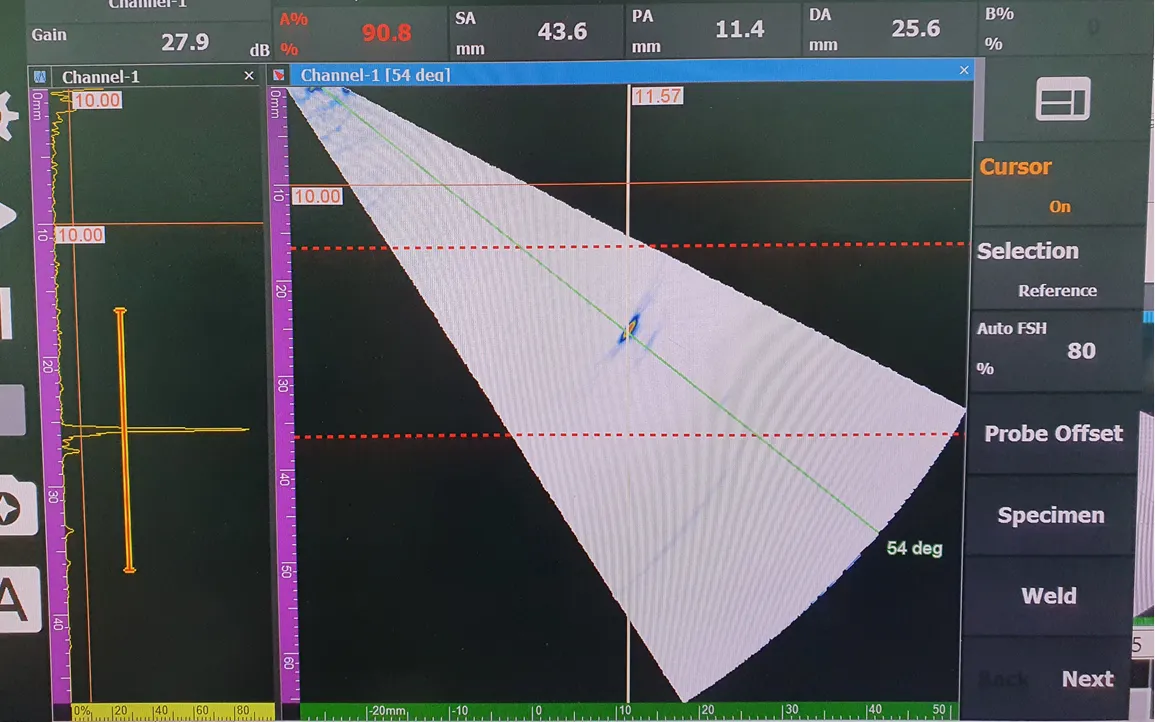

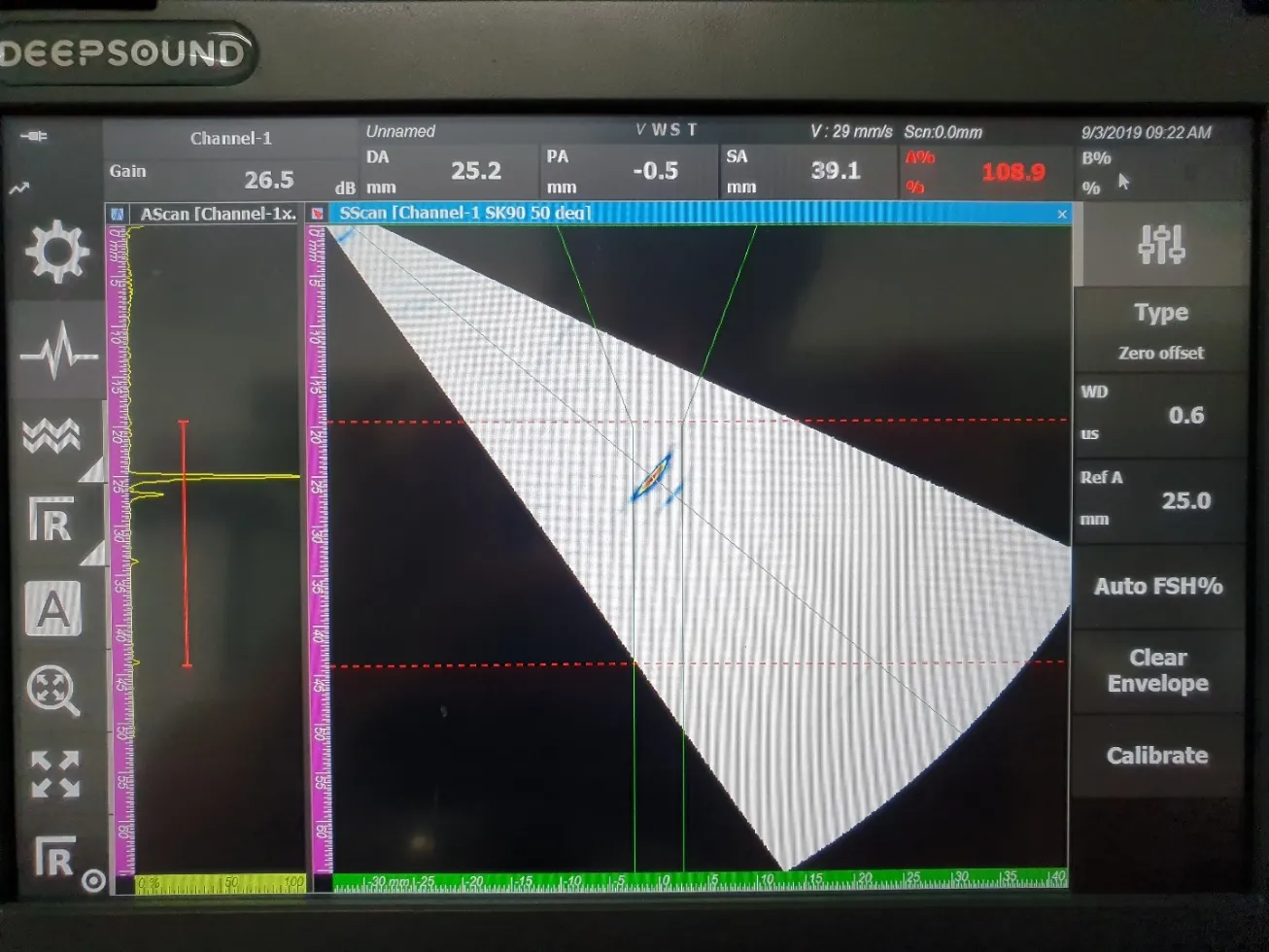

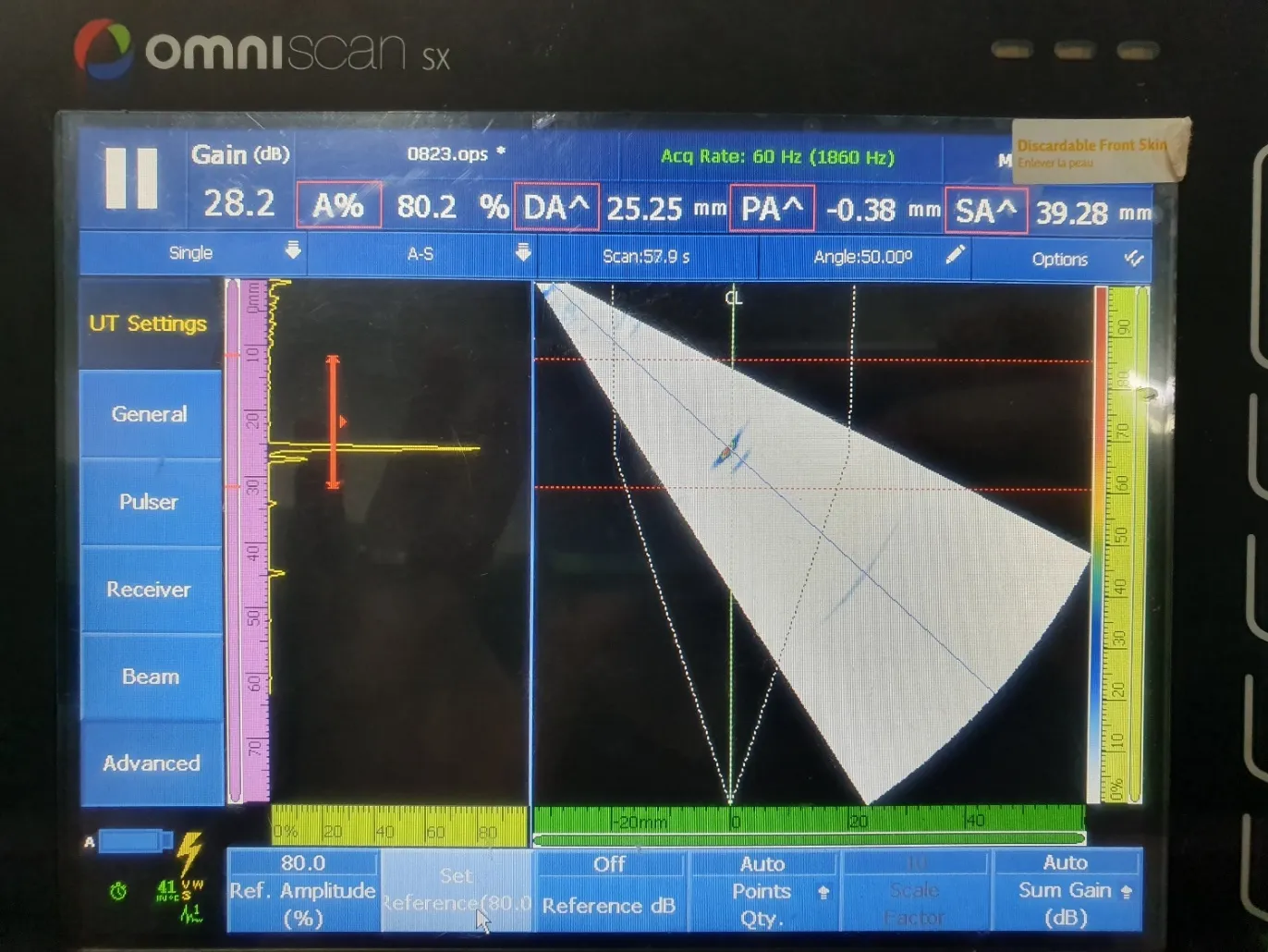

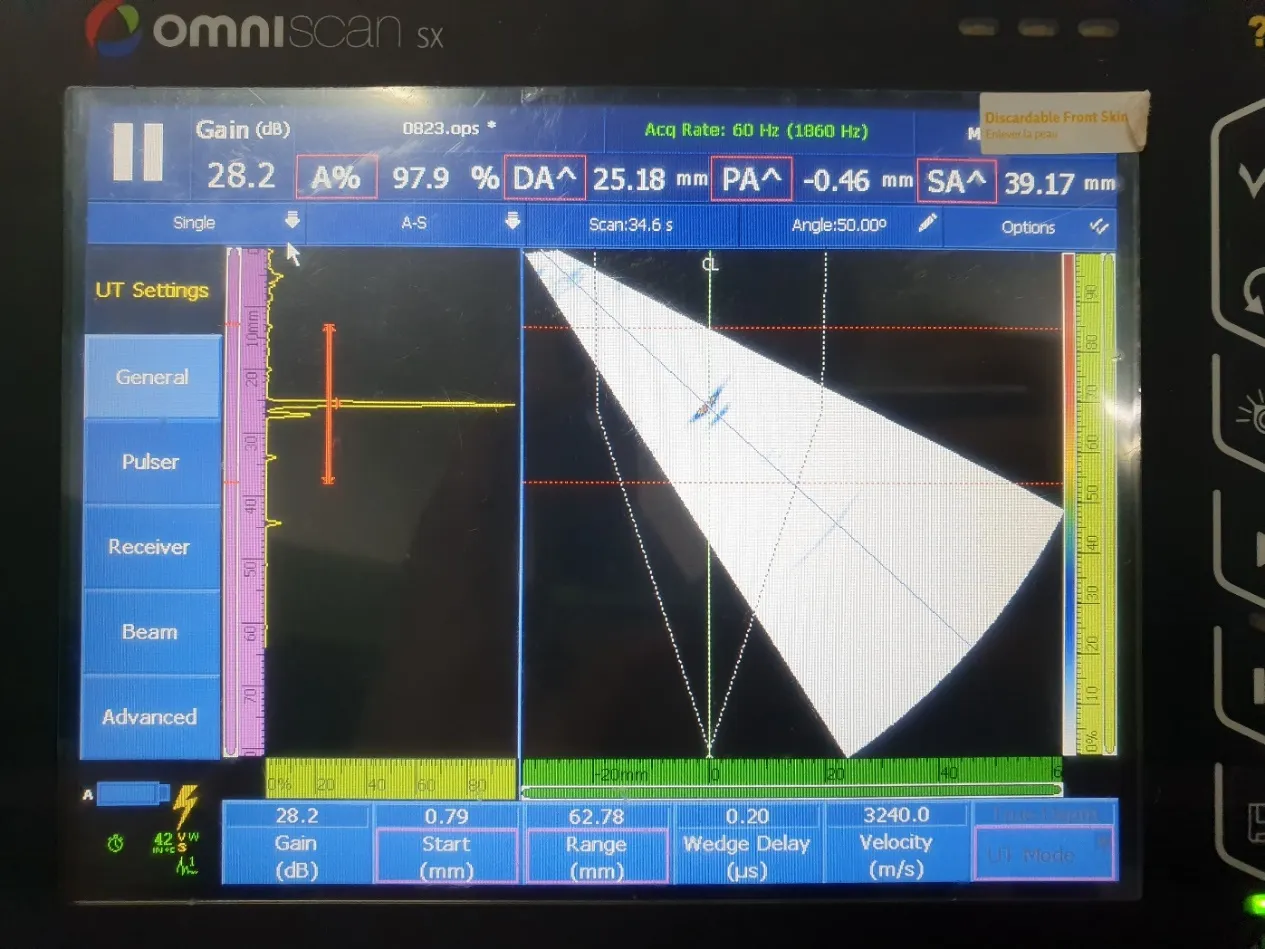

• A direct visual comparison of the S-scan images obtained from both devices.

---

Detailed Evaluation

• Further comparison of the detected signal quality and positional accuracy.

---

Comparative Data Verification

• Analysis of the discrepancy between the detected locations in both systems.

---

Conclusion

• The comparative analysis confirmed that applying a wedge delay calibration introduces variances in the PA and DA readings across both devices.
• Even with wedge delay actively applied to both systems, there remains a marginal discrepancy from the actual physical location of the defect.
• Overall, the detection capabilities and accuracy in pinpointing defects proved to be highly comparable between the DEEPSOUND P5 and the Third-Party equipment.
