Railway Inspection Equipment Comparison

• This report evaluates the performance of Third-Party Equipment and the DEEPSOUND P5 on a specified railway sample specimen.

---

Equipment Overview

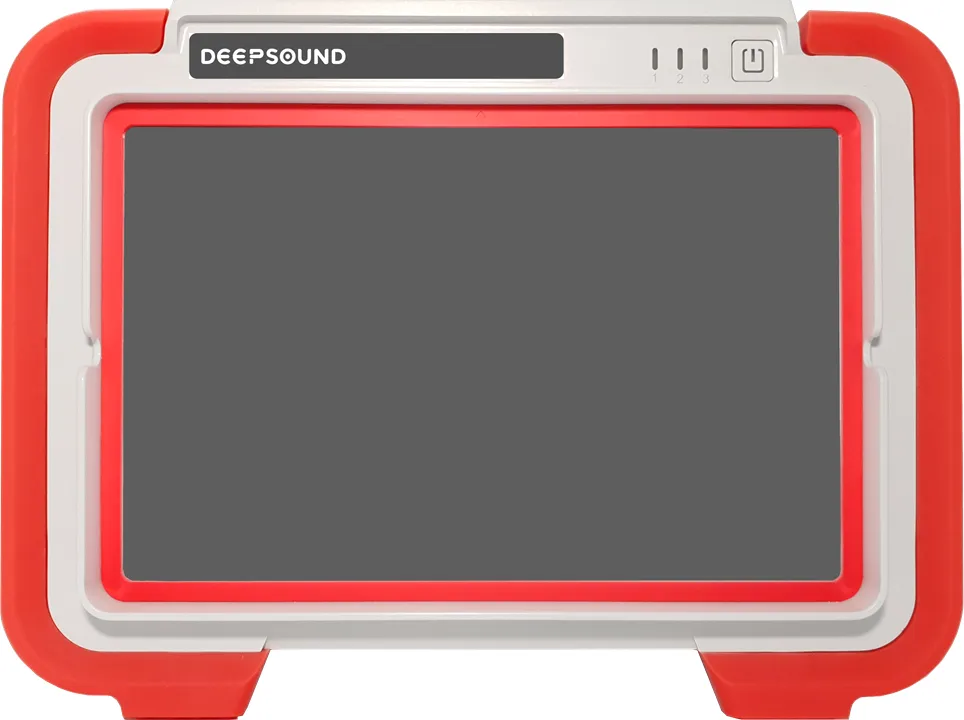

• Name: DEEPSOUND P5

• Name: Third-Party Equipment

---

Probe and Wedge Specifications

• The equipment is configured based on the following specifications:

• Probe

• Wedge: SA1-N55S

---

Test Specimen Diagram

• Analysis of the internal structure of the railway test specimen.

---

Parameter Values Without Wedge

• Initial configurations for linear scan inspection with the wedge detached:

DEEPSOUND P5

• Element Count: 16 / Aperture Size: 8
• Range: 50 mm / Wedge Delay: 0.6 μs
• Velocity: 5890 m/s / Voltage: 80 V
• Filter: 2.5 ~ 8 MHz / Beam Type: Linear
• Focusing Position: 20 mm

Third-Party Equipment

• Element Count: 16 / Aperture Size: 8
• Range: 50 mm / Wedge Delay: 1.3 μs
• Velocity: 5900 m/s / Voltage: 80 V
• Filter: 2 ~ 10 MHz / Beam Type: Linear
• Focusing Position: 20 mm

---

Probe Positions & Linear Inspection (No Wedge)

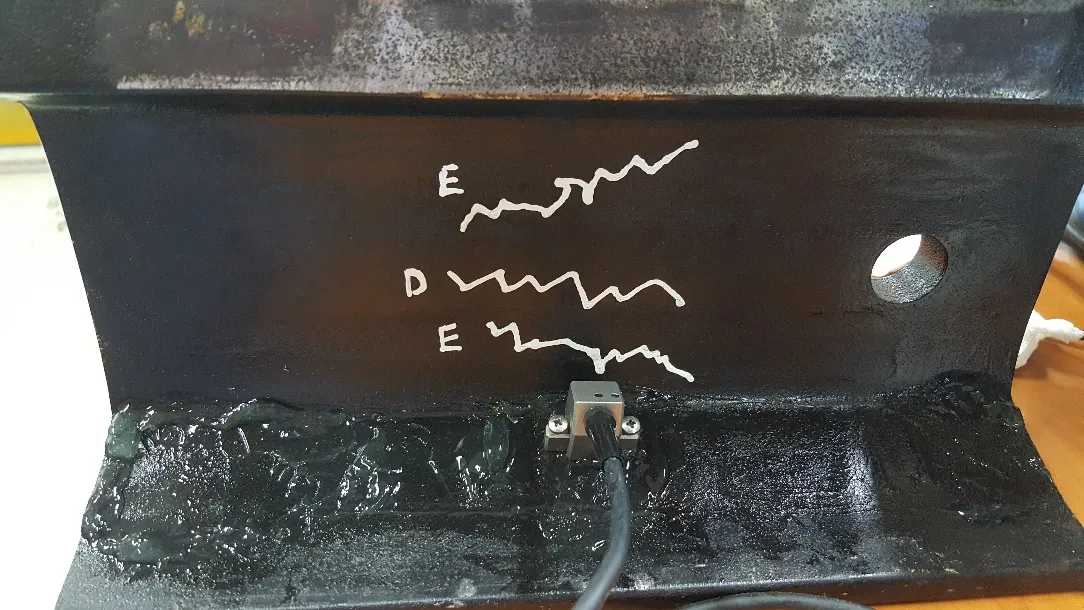

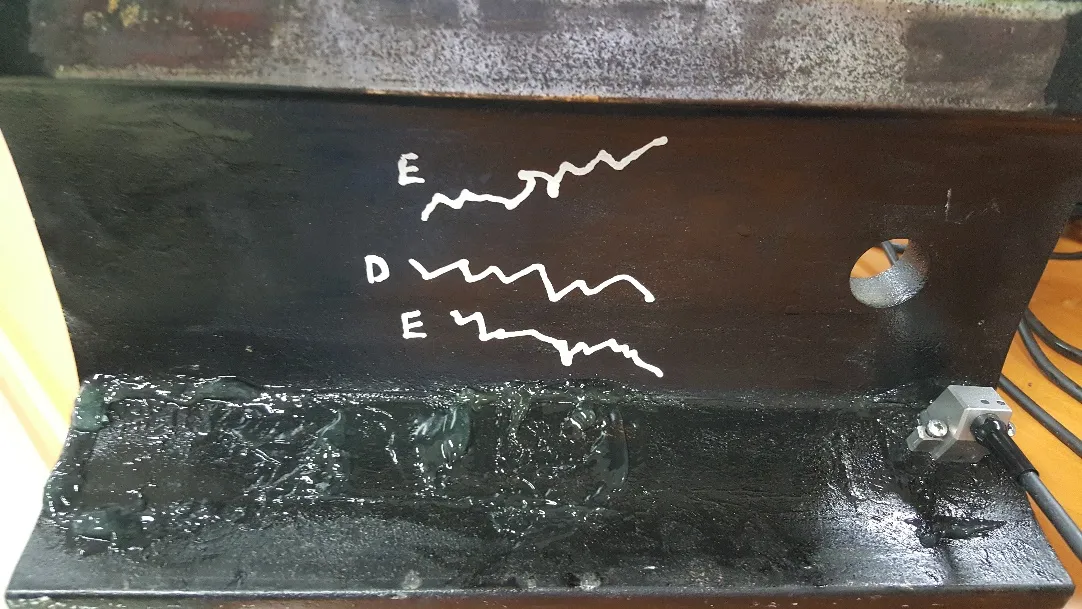

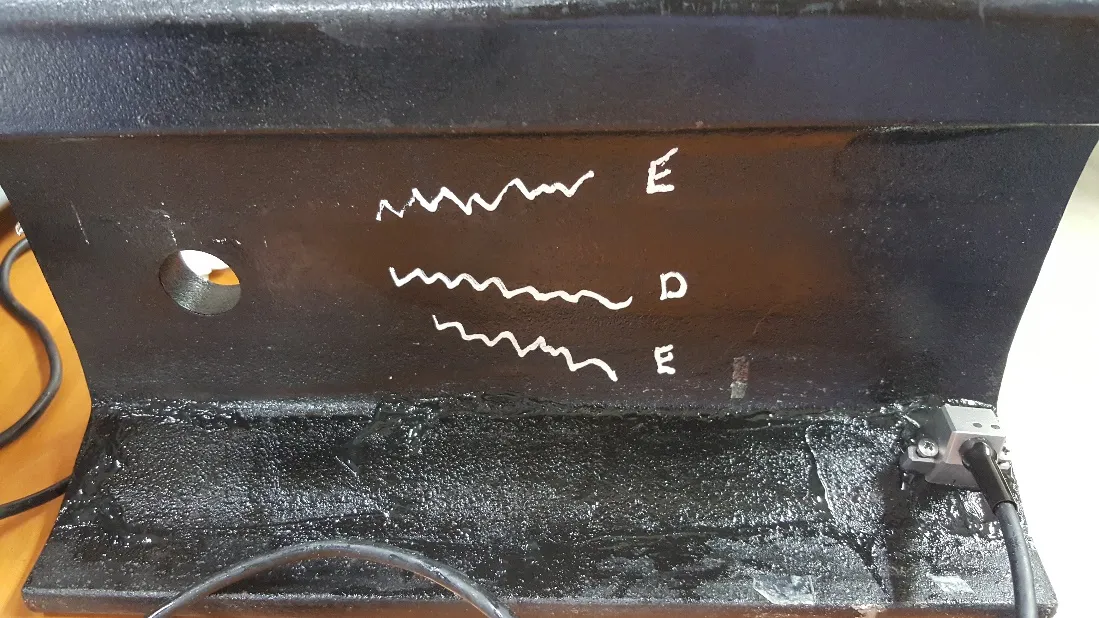

• Probe Positions:

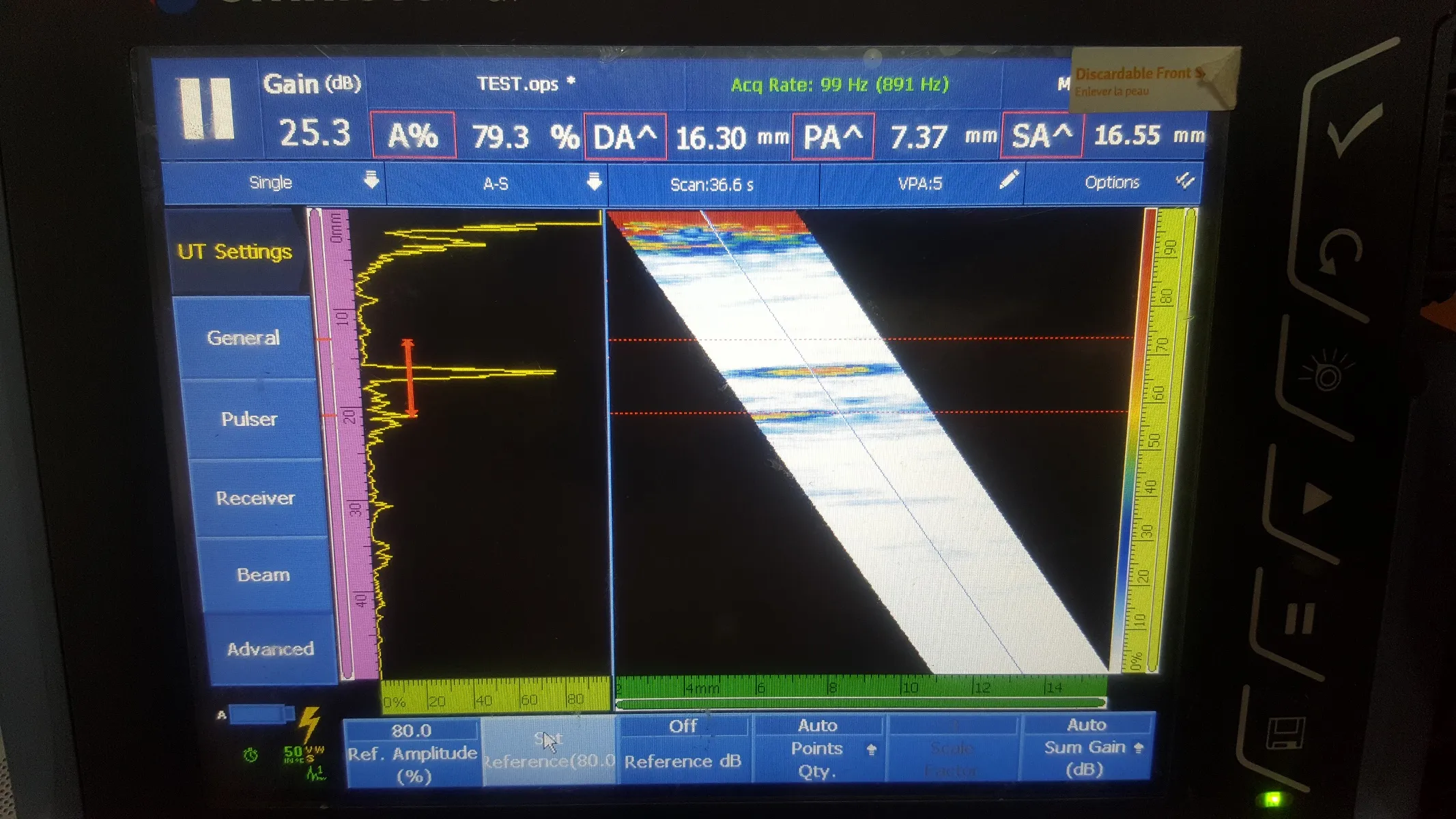

• Linear Inspection Scans:

---

Data Comparison (Linear Scan)

• The discrepancy in Depth Axis (DA) values is within 1 mm, indicating highly comparable accuracy.

Defect	DEEPSOUND P5 DA (mm)	Third-Party Equipment DA (mm)	Difference (mm)
#1	16.30	16.30	0.00
#2	20.30	20.87	0.57
#3	10.80	11.04	0.24

---

Parameter Values With Wedge

• Configurations adjusted for sectorial/linear scans with the wedge attached:

DEEPSOUND P5

• Range: 80 mm / Wedge Delay: 10.7 μs
• Voltage: 100 V / Filter: 2.5 ~ 8 MHz
• Beam Type: Sectorial / Angle: 35 ~ 70 degrees
• Focusing Position: 20 mm

Third-Party Equipment

• Range: 80 mm / Wedge Delay: 21.3 μs
• Voltage: 100 V / Filter: 2 ~ 10 MHz
• Beam Type: Sectorial / Angle: 35 ~ 70 degrees
• Focusing Position: 20 mm

---

Inspection With Wedge

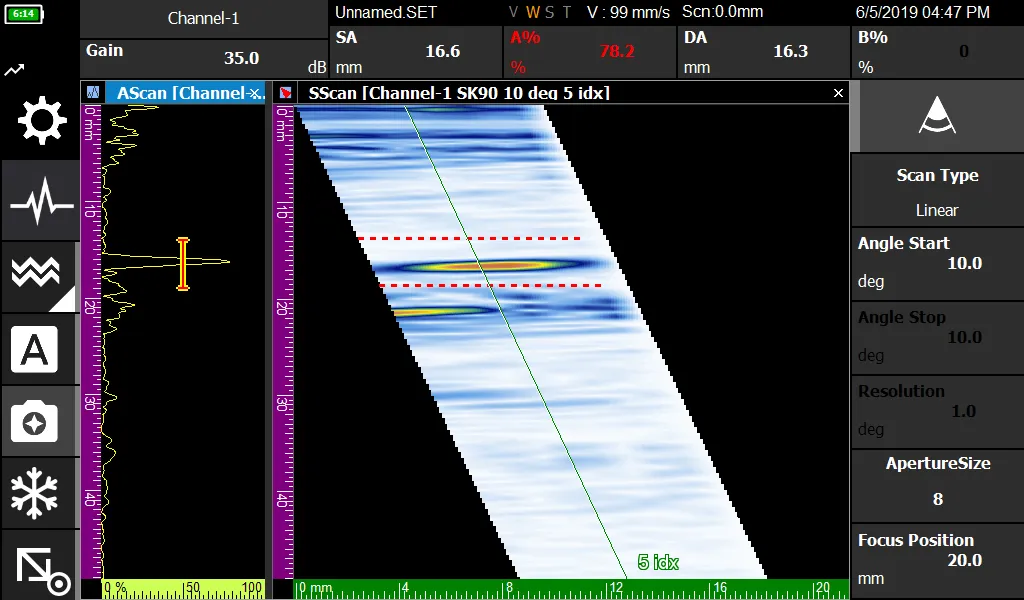

• Probe Positions With Wedge:

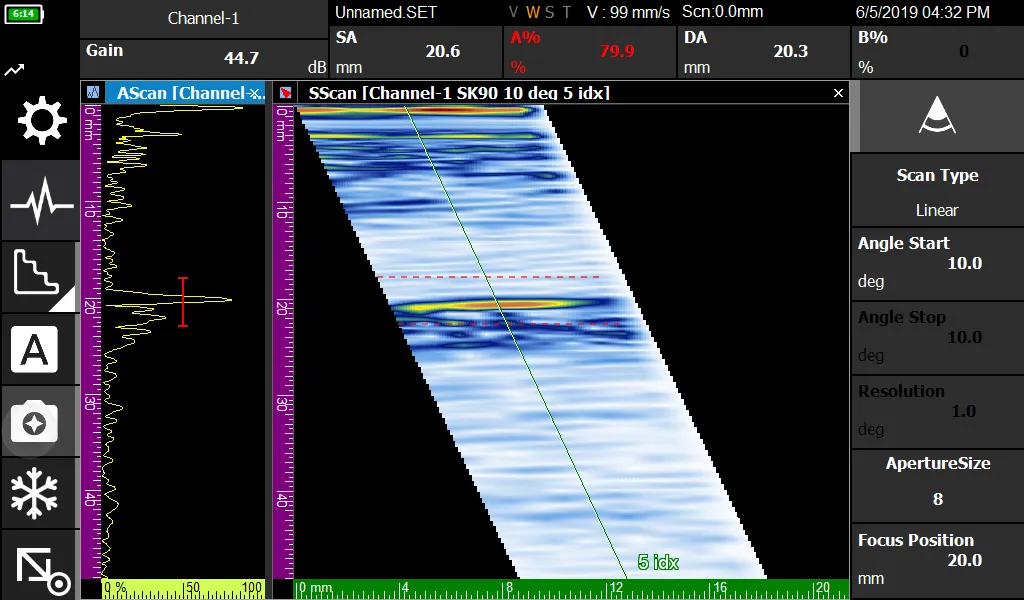

• Inspection Results:

---

Data Comparison (Wedge Scan)

Defect	DEEPSOUND P5 DA (mm)	Third-Party Equipment DA (mm)	Difference (mm)

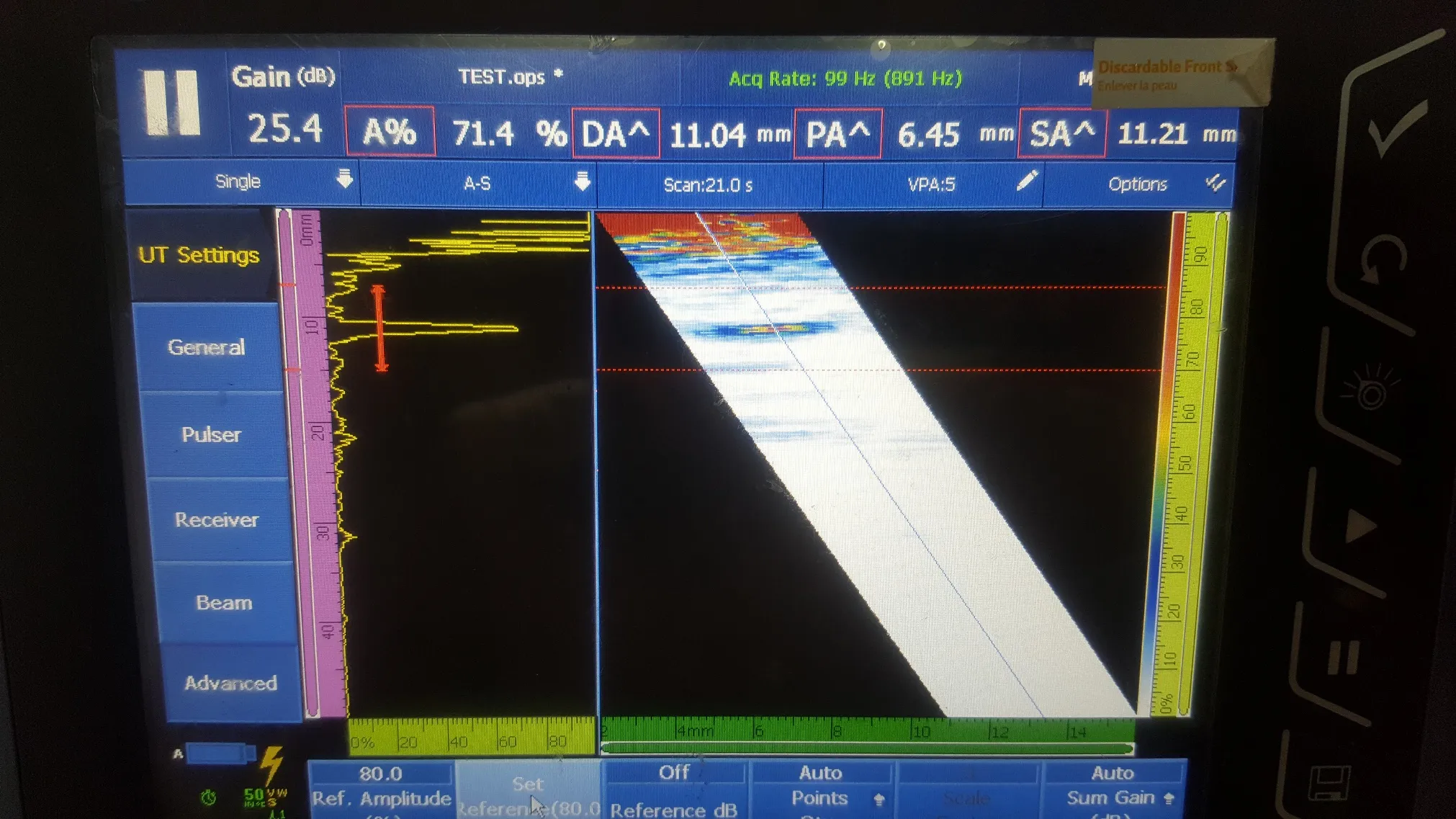

#1	15.60	15.89	0.29

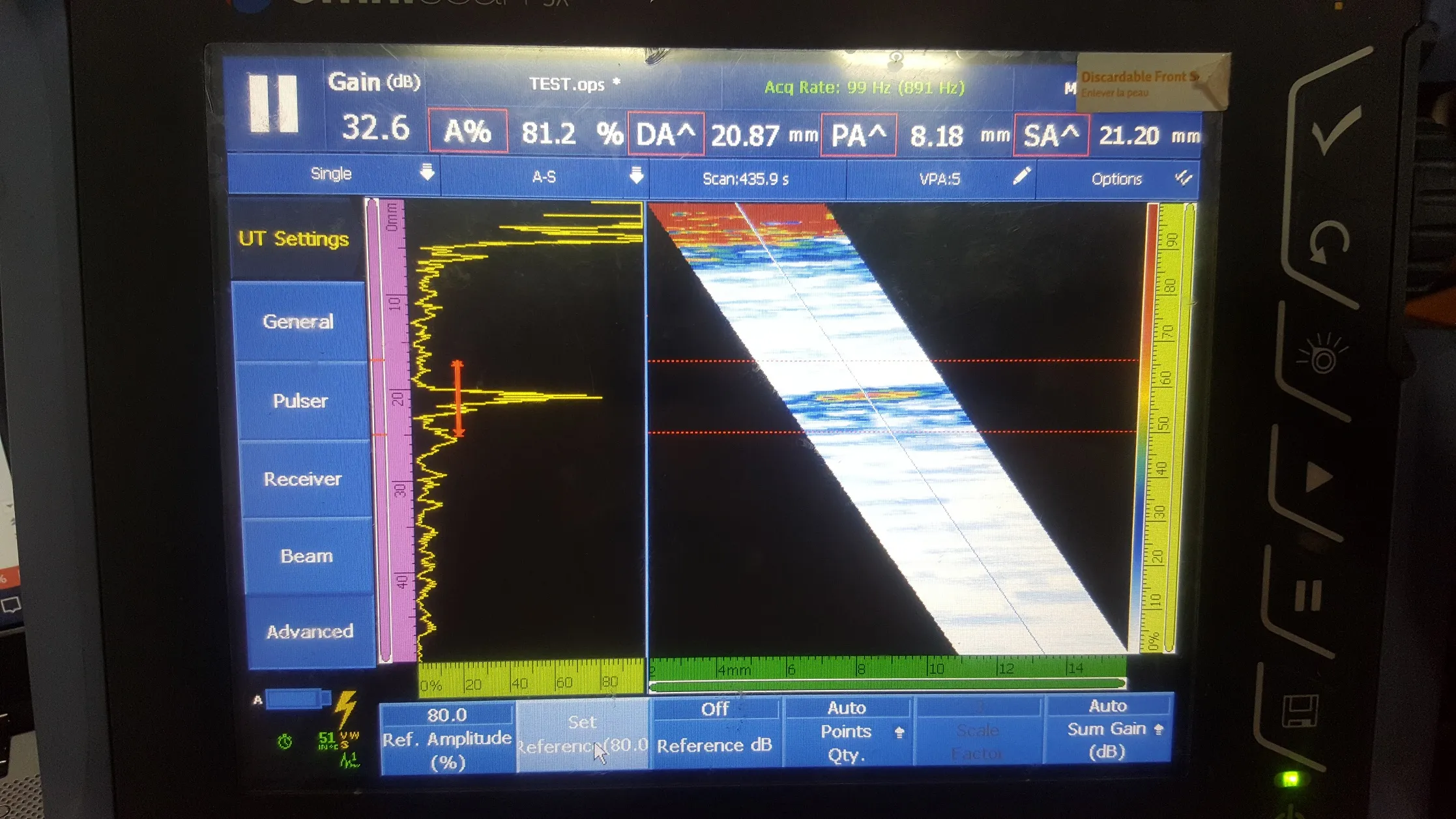

#2	19.30	19.64	0.34
#3	10.81	11.01	0.20

---

Final Comparison Results

Category	DEEPSOUND P5	Third-Party Equipment
Defect Inspection	Exceptional image sharpness; highly accessible and easy to inspect.	Lacks image sharpness; difficult to inspect accurately.
Defect Shape	Clear borders simplify shape and size measurement.	Blurred borders complicate precise measurement.
Program Speed	Fast response time (< 1 sec).	Sluggish response time (2-5 sec).

Conclusion: The DEEPSOUND P5’s combination of swift operation and sharp image quality significantly ensures more precise and efficient defect detection than standard alternatives.
